Cam Slide Line Blind Valves, ASME B16.34, WCB, A105, 12 IN

Name: Cam Slide Line Blind Valves, ASME B16.34, WCB, A105, 12 IN
SKU: LV-LBV-20260311-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This full bore cam slide line blind valve is engineered for reliable isolation in piping systems, featuring ASME B16.34 compliance for pressure and dimensional standards. Constructed from high-quality carbon steel (ASTM A216 WCB or ASTM A105), the valve ensures excellent strength, durability, and corrosion resistance. With a 12-inch (DN300) size and Class 150 LB rating, it delivers secure shut-off and leak-proof performance in industrial applications. Flanged ends provide easy installation and secure integration into existing pipelines. Designed for demanding service conditions, this valve is ideal for flow isolation in chemical, oil, and gas systems. As a leading Cam Slide Line Blind Valves Supplier in China, we offer premium, high-performance valves built for long-term reliability and operational safety.

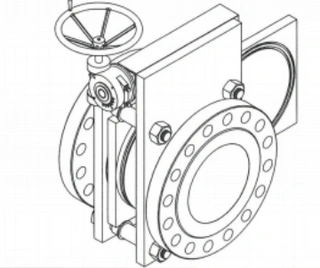

Cam-Slide Line Blind Valve

Request a quote

Detail Information

Product Name: Cam Slide Line Blind Valve (Horizontal Slide Type)
Standard: ASME B16.34
Nominal Size: 12 Inch (DN300)
Pressure Class: Class 150 LB
Bore: Full Bore
Design: Fire Safe
Face-to-Face (Flange to Flange): 425 mm
Blind Movement: Horizontal sliding motion
Installation Orientation: Horizontal pipeline

Service Conditions:

Fluid: Petrol (PMS) and Diesel (AGO)
Service Type: Liquid hydrocarbons
Application: Tank inlet and outlet lines, pump suction and discharge, product manifolds

Pressure and Temperature Rating:

Pressure Class: ANSI Class 150 LB
Design Temperature: -20°C to +80°C
Operation Condition: Blind insertion and withdrawal only at zero differential pressure

End Connections:

Facing: Raised Face (RF)
Flange Standard: ASME B16.5
Rating: Class 150 LB
Pressure Test: API 598

Materials of Construction:

Body: ASTM A216 WCB or ASTM A105
Blind Plate: ASTM A516 Grade 70
Cam Mechanism and Shaft: Stainless Steel AISI 410 or 420
Primary Seals: metal to metal
Secondary Seals: PTFE or Viton (FKM), fuel compatible.
