ASTM A536 65-45-12 Backwater Valves, Ductile Iron, 175 PSI
Model Number: LV-BWV-20241219-01
Key Specifications / Features
We are a leading manufacturer of ductile iron backwater valves, crafted from ASTM A536 Grade 65-45-12 for enhanced durability and strength. These valves feature ASTM A888 connection ends and are designed to withstand a working pressure of 175 PSI, ensuring reliable performance in demanding environments. The valves are finished with a high-quality painted surface for added corrosion resistance and longevity. Ideal for wastewater and stormwater management applications, our backwater valves provide effective protection against backflow.
Detail Information
Product Item: Ductile Iron Backwater Valve
Material: Ductile Iron ASTM A536 Grade 65-45-12
Temperature Range: 0°C to 80°C
Coating: Painting
Working Pressure: 175 PSI
Connection Ends: ASTM A888

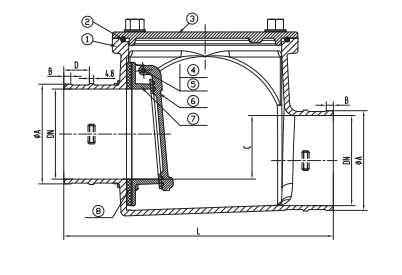

Material Specification
| Part No. | Part | Standard Specification |
| 1 | Valve Body | ASTM A536, 65-45-12 |
| 2 | O-Ring | NBR |
| 3 | Bonnet | ASTM A536, 65-45-12 |
| 4 | Bolt | AISI 304 |
| 5 | Nut | AISI 304 |
| 6 | Disc | ASTM B62 C83600 |
| 7 | Seat | ASTM B62 C83600 |
| 8 | Disc Seat Ring | EPDM |
Note: For Special material request that differ from standard specification, please clearly indicate them on the inquiry or order list.
Valve Dimensions
| DN | PSI | Dimensions (mm) | |||||
| Inch | mm | L | A±2.29 | B | C (min) | D | |
| 4" | 100 | 175 | 305 | 112.78 | 7.87 | 50 | 29 |
| 8" | 150 | 175 | 457 | 214.38 | 7.87 | 101 | 51 |
Note: Only 4 " has been FM approved. Other dimensions are under application.
