ASTM A536 65-45-12 Air Bleed Valves, 2-8 Inch, 300 PSI
Model Number: LV-ABV-20241223-02
Key Specifications / Features
We are a trusted manufacturer of Compound High-Speed Air Bleed Valves, crafted from ASTM A536 Grade 65-45-12 material for exceptional strength and durability. Available in sizes ranging from 2 to 8 inches, these valves are rated for 300 PSI and 0.02 to 1.6 MPa, making them ideal for various pressure systems. Featuring fusion-bonded epoxy-coated surfaces for enhanced corrosion resistance, they are equipped with flange ends for secure, leak-proof connections. Designed for reliable performance in demanding environments.
Detail Information
Product Item: Compound High-Speed Air Bleed Valve
Body Material: ASTM A536 Grade 65-45-12
Size Range: 2 Inch - 8 Inch
Rated Working Pressure: 0.02 MPa - 1.6 MPa
Temperature Range: 0°C to 55°C
Working Pressure: 300 PSI
200 PSI and 250 PSI available upon request
Connection Ends: Flange to ASME B16.1 CL 125
Coating: Fusion Bonded Epoxy Coating under ANSI/AWWA C550

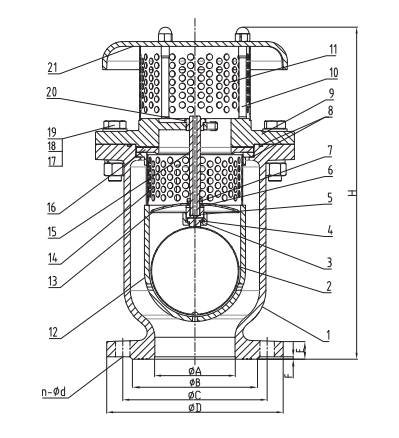

Material Specification
| Part No. | Part | Standard Specification | Options |
| 1 | Valve Body | ASTM A536, 65-45-12 | |
| 2 | Ball | AISI 304 | |
| 3 | Nut | Brass HPb59-1 | |
| 4 | Gasket | EPDM | |
| 5 | Nut | Brass HPb59-1 | |
| 6 | Rubber Pad | EPDM | |
| 7 | Nut | AISI 304 | AISI 316 |
| 8 | O-Ring | NBR | |
| 9 | Bonnet | ASTM A536, 65-45-12 | |
| 10 | Screw | AISI 304 | |
| 11 | Protective Shield | AISI 304 | |
| 12 | Floating Ball Cap | ASTM A536, 65-45-12 | |
| 13 | Lift Cover | AISI 304 | |
| 14 | Floating Ball Cover Net | AISI 304 | |
| 15 | Stem | AISI 304 / H62 | |
| 16 | Gasket | EPDM | |
| 17 | Hex Nut | Carbon Steel Zinc Plated | AISI 304, AISI 316 |
| 18 | Washer | Carbon Steel Zinc Plated | AISI 304, AISI 316 |
| 19 | Hex Bolt | Carbon Steel Zinc Plated | AISI 304, AISI 316 |
| 20 | Guide Sleeve | H62 | |
| 21 | Draft Hood | ASTM A536, 65-45-12 |
Note: For special material request that differ from standard specification, please clearly indicate them on the inquiry or order list.
Dimensions
| DN | Dimensions (mm) | ||||||||
| Inch | mm | A | B | C | D | n-ø d | E | F | H |
| 2" | 50 | 50 | 99 | 125 | 165 | 4-ø 19 | 19 | 3 | 320 |
| 2.5" | 65 | 65 | 118 | 145 | 185 | 4-ø 19 | 19 | 3 | 320 |
| 3" | 80 | 80 | 132 | 160 | 200 | 8-ø 19 | 19 | 3 | 336 |
| 4" | 100 | 100 | 156 | 180 | 220 | 8-ø 19 | 19 | 3 | 415 |
| 6" | 150 | 150 | 211 | 240 | 285 | 8-ø 23 | 19 | 3 | 540 |
| 8" | 200 | 200 | 266 | 295 | 340 | 8-ø 23 | 20 | 3 | 660 |
