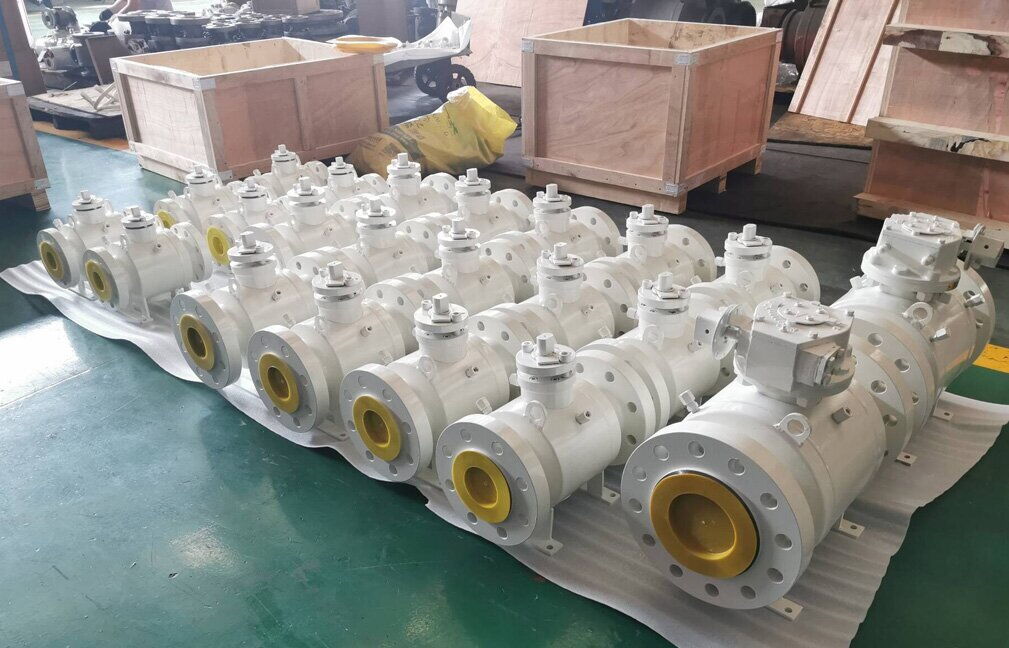

API 6D Trunnion Ball Valves, A350 LF2, 12 IN, 600 LB, RF, FP

Name: API 6D Trunnion Ball Valves, A350 LF2, 12 IN, 600 LB, RF, FP
SKU: LV-BV-20250324-04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a trusted provider of forged trunnion-mounted ball valves in China, we deliver high-performance solutions for demanding applications. This valve is designed to API 6D standards, featuring a robust ASTM A350 LF2 forged steel body for excellent strength and durability. With a 12-inch size and Class 600 LB rating, it ensures reliable operation under high pressure. The full-port design, Devlon seat, and double block and bleed (DBB) capability enhance performance and safety. Available in sizes from 2 to 12 inches, it comes with RF flanged ends for secure installation.

Request a quote

Detail Information

ASTM A350 LF2 Trunnion Mounted Ball Valve, RF Flanged Ends.

Product Item: Forged Trunnion Mounted Ball Valve, Full Port
Type: Trunnion Mounted Ball Valve (ENP 0.003 Inch)
Design Standard: API 6D
Size: 12 Inch, DN300
Pressure: Class 600 LB, PN100
Body Material: ASTM A350 LF2
Seat Material: Devlon
Ends: RF Flanged
Operator: Gear Operator
Painting: White Color
Size Range: 2 Inch - 12 Inch

Features:
Fire Safe (API 6FA & API 607)
Double Block and Bleed (DBB)
Backup Seat
Grease Injector
