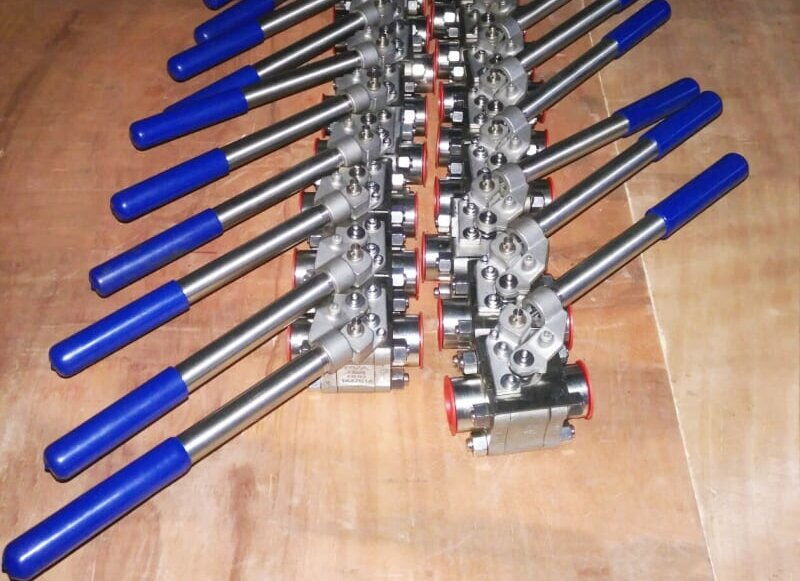

API 598 Spring Loaded Ball Valve, API 608, F316, 1IN, 800 LB
Model Number: LV-BV-20240929-01
Key Specifications / Features
We manufacture ASME B16.34 lever-operated ball valves designed for exceptional performance and reliability. Constructed from premium ASTM A182 F316 stainless steel, these valves are equipped with a spring-loaded mechanism to ensure optimal sealing. Offered in a 1-inch (DN25) size with a reduced bore, they are rated for 800 LB (PN130) pressure and feature socket weld and female ends for secure and leak-proof connections. Fully compliant with API 598 and API 608 standards, our ball valves are engineered for precision, durability, and long-lasting performance in a wide range of industrial applications.
Detail Information
| Product Name: | Spring Loaded Lever Ball Valve |
| Type: | Ball Valve |
| Standard: | API 598, API 608, ASME B16.34 |
| Sizes: | 1 Inch, DN25 |
| Class Rating: | Class 800 LB, PN130 |
| Body Material: | ASTM A182 F316 Stainless Steel |
| Ball Material: | ASTM A182 F316 Stainless Steel |
| Seat Material: | PTFE |
| Seal Material: | PTFE |
| Gasket Material: | SS 316L Winding, FG Filling, SS 316 Outer Ring |
| Bore: | Reduced Bore |
| Fire Safe Certified: | Yes |
| Anti Static Device Fitted: | Yes |
| End Connection: | Socket Weld, Female, F-NPT |
| Operation: | Spring Loaded Lever |
