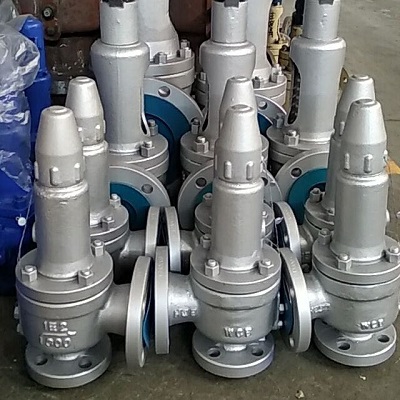

316 Stainless Steel Relief Valve, PN900, D Orifice
Model Number: LV 17 SV 01
Key Specifications / Features
316 Stainless Steel Relief Valve Supplier in China: 316 Stainless Steel Relief Valve, A-105, Inlet DN20, Outlet DN25, Flange PN900, D Orifice Designation.
Detail Information
Type: Pressure Relief Valve.
Body Material: ASTM A-105.
Inlet Size : DN20.
Outlet Size: DN25.
Flange Rating: PN900.
Orifice Designation: D.
Seat & Disc: 316 S.S.
Type Facing: RF.
Pressure Relief, Bonnet : Closed, Body Material : ASTM A-105, Size Inlet: DN20, Size Outlet: DN25, Flange Rating: PN900, Type Facing: RF, Orifice Designation: D.
Trim Material:
Seat & Disc: 316 S.S, Guide & Ring: 316 S.S, Spring: 316 S.S.
Accessories:
Cap or Lever: Cap, Gag : Yes, Basis of Selection, Code: API-RP-520, Other: Pressure Relief.
Service Condition:
Fluid: Diesel / Petrol, SP. GR. @ F.T.: 0.85, Viscosity @ F.T. CP: 6, Pressure: PSIG. Norm. Relieving: 58, 80, Temp.-°F Norm. Relieving: AMB, AMB, Constant Back Pressure PSIG: 20, Developed Back Pressure PSIG: -, Spring Set Prsessure PSIG, Overpressure - %: 10.
Body Material: ASTM A-105.
Inlet Size : DN20.
Outlet Size: DN25.
Flange Rating: PN900.
Orifice Designation: D.
Seat & Disc: 316 S.S.
Type Facing: RF.
Pressure Relief, Bonnet : Closed, Body Material : ASTM A-105, Size Inlet: DN20, Size Outlet: DN25, Flange Rating: PN900, Type Facing: RF, Orifice Designation: D.
Trim Material:
Seat & Disc: 316 S.S, Guide & Ring: 316 S.S, Spring: 316 S.S.
Accessories:
Cap or Lever: Cap, Gag : Yes, Basis of Selection, Code: API-RP-520, Other: Pressure Relief.
Service Condition:
Fluid: Diesel / Petrol, SP. GR. @ F.T.: 0.85, Viscosity @ F.T. CP: 6, Pressure: PSIG. Norm. Relieving: 58, 80, Temp.-°F Norm. Relieving: AMB, AMB, Constant Back Pressure PSIG: 20, Developed Back Pressure PSIG: -, Spring Set Prsessure PSIG, Overpressure - %: 10.
