Hot Induction API 5L GR 60 PSL2 Bend, 90 Degree, 24 Inch

Name: Hot Induction API 5L GR 60 PSL2 Bend, 90 Degree, 24 Inch
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Upgrade your piping systems with our high-quality hot induction API 5L GR 60 PSL2 bends. These bends are made with durable materials and are designed to provide a smooth and efficient directional change in your pipelines. Our bends are tested and certified to meet API 5L GR 60 PSL2 standards and are suitable for use in demanding industrial environments. Browse our selection now and trust in our commitment to delivering reliable and efficient piping solutions.

Request a quote

Detail Information

Hot Induction 90 Degree Pipe Bend, API 5L GRADE 60 SMLS, 5D BENDS, PSL2, BE, MANUF. ASME B16.49 STANDARD 24 Inch WT:17.5MM, SOUR SERVICE, 1000MM EXTENDED LENGTH AT BOTH ENDS, WOODEN CASE PACKAGE, HYDROTEST AT 20.5MPA NDT-UT AND MPT TEST

Product Name: SMLS 90 DEGREE Pipe Bend
Standard: API 5L GRADE 60 PSL2, ASME B16.49
Wall Thickness: 17.5 MM
Size: 24 Inch, DN600

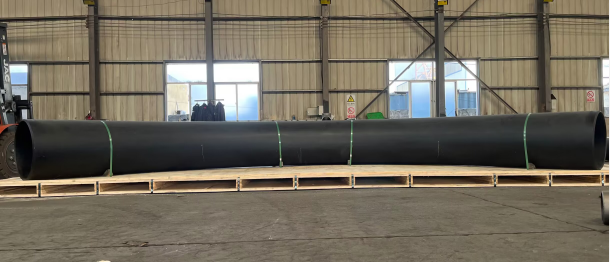

This HOT INDUCTION PIPE BEND, made from API 5L GRADE 60 SMLS material, is designed for PSL2 sour service and features a 90 degree bend with 5D bends. It follows to ASME B16.49 Standard 24 Inch WT:17.5MM and is manufactured to standard specifications, with a 1000 mm extended length at both ends. During hydro test at 20.5 MPA, this bend passed both NDT-UT and MPT tests, demonstrating its quality. Packaged in a sturdy wooden case, this HOT INDUCTION PIPE BEND is the perfect solution for your piping needs.
