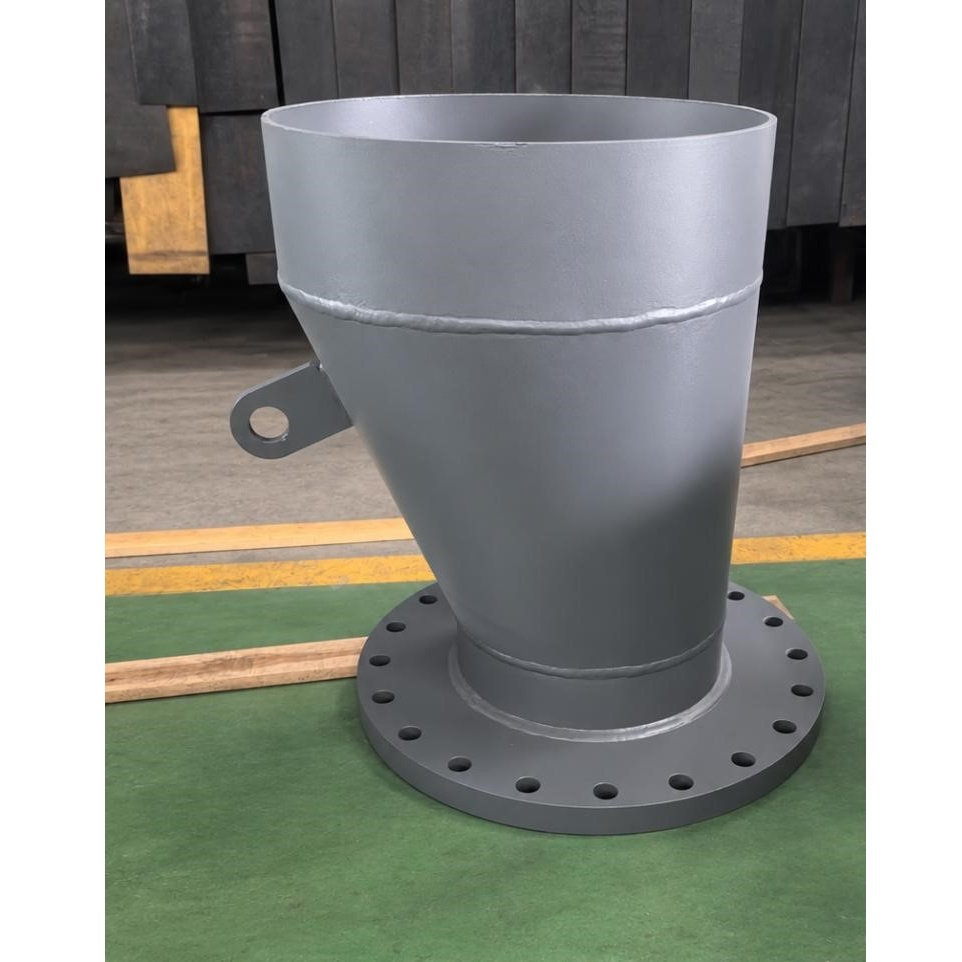

ASTM A234 WPB Eccentric Reducer, ASME B16.9, DN600 X DN400
Key Specifications / Features
Fabricated per ASME B16.9, this DN600×DN400 eccentric reducer adopts ASTM A234 WPB carbon steel construction at SCH STD wall thickness. It is pre-assembled with one welded ASTM A105 PN16 raised face flange for fast site connection. Its offset centerline design prevents liquid trapping in horizontal runs. Deployed across industrial process piping, it absorbs heat-induced expansion, cushions vibration and tolerates minor pipe shifting, cutting concentrated stress on pipe runs and linked equipment for dependable long-term fluid service.
Detail Information

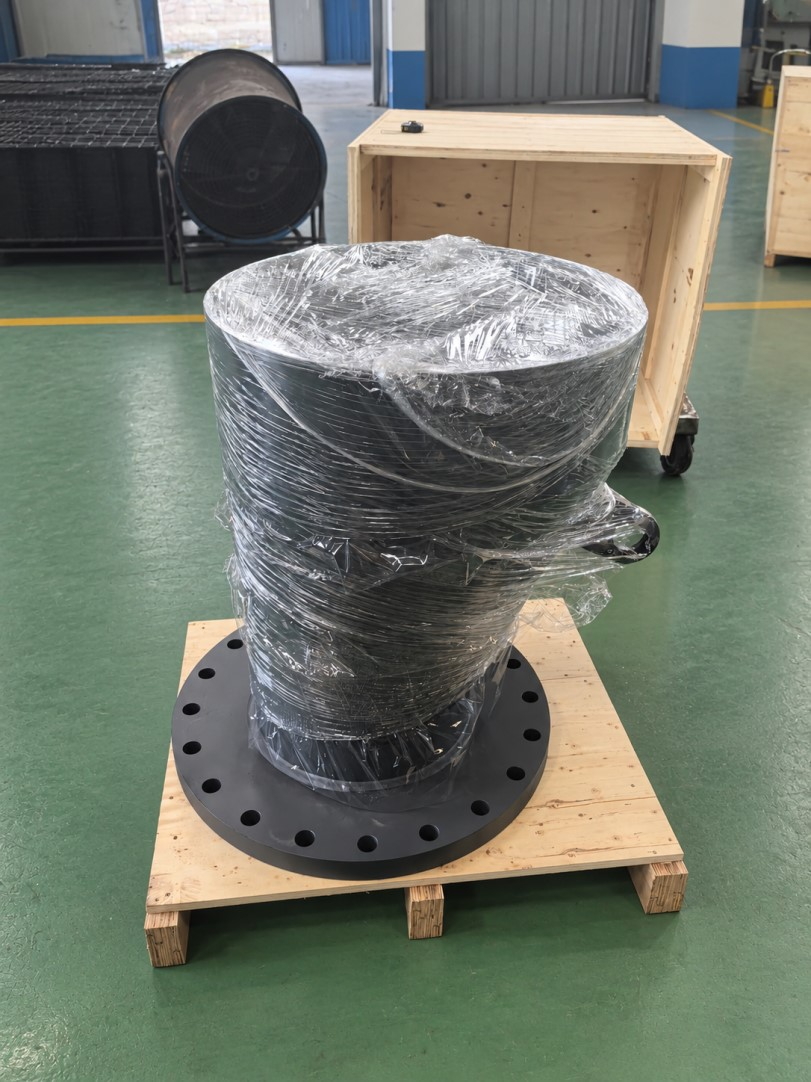

Item: Eccentric Reducer Assembly with Pipe Weldment and Single Flange
Nominal Size: DN600 X DN400
Schedule: SCH STD
Reducer Material: ASTM A234 WPB
Design & Manufacturing Standard: ASME B16.9
Flange Material: ASTM A105
Flange Rating: PN16
Flange Finish: Raised Face (RF)
Product Overview

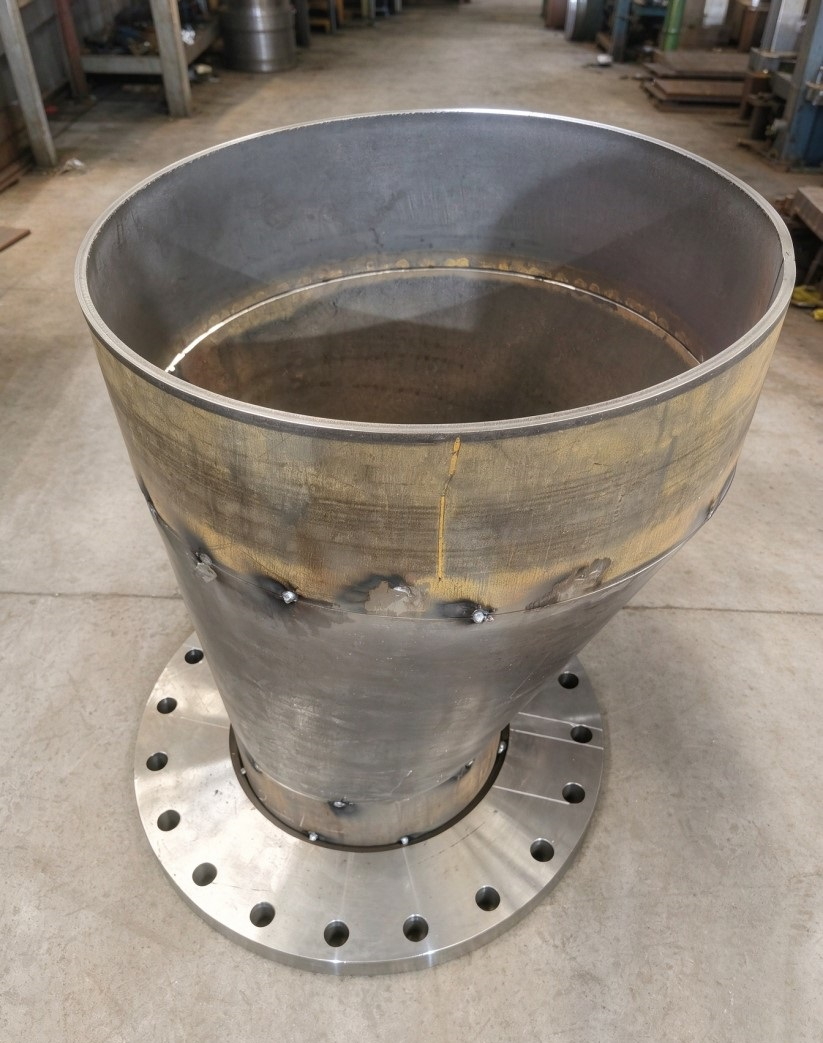

This prefabricated eccentric reducer set is sized DN600 by DN400 and built to SCH STD wall thickness. The reducer body is ASTM A234 WPB carbon steel, joined by welding to pipe sections and fitted with one ASTM A105 carbon steel raised face flange, complying fully with ASME B16.9 requirements.
Application Scope
It is integrated into industrial process piping circuits to accommodate thermal growth, mechanical vibration, and slight pipe displacement. The component helps distribute loads and minimize stress concentration on connected pipe segments and process equipment.
