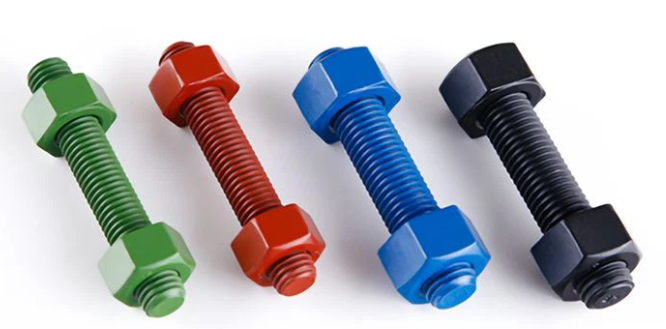

ASTM A193 Stud Bolt with Nuts, Full Thread, XYLAN 1424 Coated

Name: ASTM A193 Stud Bolt with Nuts, Full Thread, XYLAN 1424 Coated
SKU: LPF-240126-OF-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As an ASTM A193 Stud Bolts Manufacturer, we specialize in producing high-quality fastening solutions designed to meet diverse industrial needs. Our stud bolts come with two hex nuts and feature full threading for secure and reliable connections. Crafted from top-grade alloys including stainless steel, we offer a comprehensive range of ASTM A193 grades such as B5, B6, B7, B7M, B16, B8, B8A, B8M, B8MA, B8T, and more.

Request a quote

Detail Information

Product Name: ASTM A193 Stud Bolt with Nuts
Material: ASTM A193
Coating: PTFE / XYLAN 1424 Coated
Feature: Full Thread, Hexagonal Shape

The ASTM A193 specification covers alloy-steel and stainless steel stud bolts materials for high temperature or high-pressure service.
ASTM A193 stud bolts are available in national coarse (UNC) thread pitches, generally used in traditional applications, which means that there are 8 threads per inch ("thread per inch") for rod diameters above 1 inch. B7 is the most common specification grade for stud bolts.

The most common stud bolts materials covered by ASTM A193 are:
ASTM A193 B5, ASTM A193 B6
ASTM A193 B7: Alloy steel, AISI 4140/4142 quenched and tempered.
ASTM A193 B7M, ASTM A193 B16
ASTM A193 B8: Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8A
ASTM A193 B8M: Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8MA
ASTM A193 B8T (SS 321)
ASTM A193 B8 Cl2: Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened.
ASTM A193 B8T Cl2
ASTM A193 B8M Cl2: Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened.
