ASME B16.9 Long Radius Elbow, ASTM A403 WP304-S, 28 Inch, BW
Key Specifications / Features

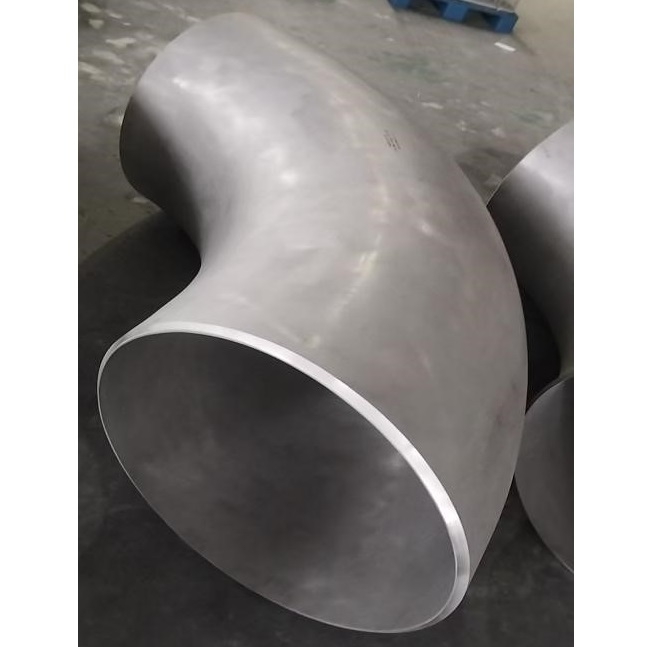

Crafted from ASTM A403 WP304-S stainless steel, this 28-inch SCH 20 long-radius butt-weld elbow complies with ASME B16.9 dimensional rules. Its gradual 90° bend lowers flow resistance and turbulence within large piping runs. Prepared butt-weld ends ensure precise alignment and connection to matching schedule pipe. Visible body stamps supply key specs and heat numbers for traceability. It fits industrial process, water, and utility piping; material documentation and working condition compatibility need confirmation ahead of installation.
Detail Information
Product Category: 90 Degree Long Radius Butt Weld Elbow
Nominal Bore: 28 inches, marked on the fitting body
Wall Schedule: SCH 20
Material Grade: ASTM A403 WP304-S stainless steel, confirmed by surface stamping
Dimension Code: ASME B16.9 marked; prepared butt weld ends for field joining
Main Strengths
Gentle Flow Redirection: Long-radius 90-degree bend cuts flow turbulence with its seamless curved transition.
Matched Large Bore Interface: Fabricated to butt weld seamlessly with 28-inch SCH 20 piping of the same specification.
WP304 Stainless Alloy: Delivers reliable everyday corrosion resistance under suitable working fluids and environments.

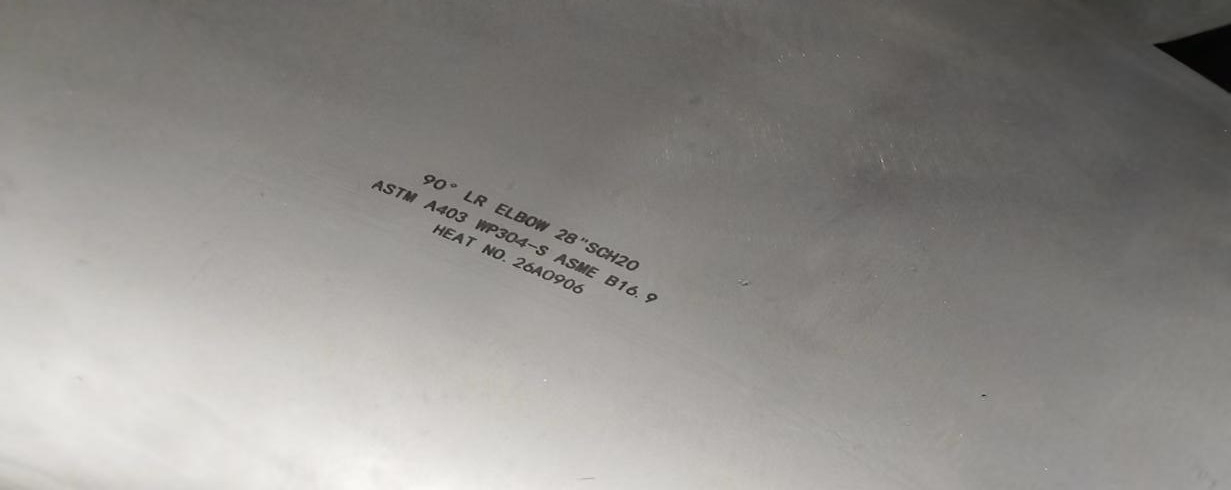

Complete Batch Traceability: Markings cover size, schedule, material standard, and heat number for receiving inspection and record-keeping.
Application Scope
Suited for stainless steel industrial piping circuits needing a 90-degree flow turn, such as plant utility networks, water transfer systems, and process service lines. Material test reports, dimensional compliance, and process medium compatibility should be confirmed before specification or procurement.
