JIS B2313 PN25 Slip-On Flange, RF, ASTM A350 LF2
Key Specifications / Features
China ASTM A350 JIS B2313 PN25 Slip-On Flange: RF, ASTM A350 LF2 Slip On Flanges, AWWA C207, JIS B2312, Schedule 10-100, 1/2-56 Inch, DN15-DN1400.
Request a quote
Detail Information
Product: JIS B2313 PN25 Slip-On Flange.
Type: Slip-On Flange.
Materials: ASTM A350.
Grades: LF2.
Face: RF.
Standards: AWWA C207, JIS B2313, JIS B2312.
Pressure: PN25.
Schedule: Schedule 10 - Schedule 100.
Size: 1/2-56 Inch (DN15-DN1400).

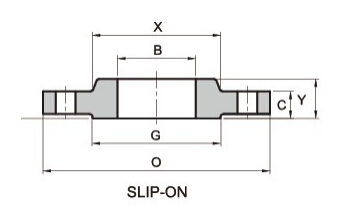

| Flange Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. Of Hub | Diameter of Raised Face | Length Hub.Y | Bore | Diam. of Bolt Circle | Diam. of Bolt Holes | Number of Bolts | Diam. Of Bolts (inch) | KG | LB | |
| inch | dn | O | C | X | G | Y | B | BC | BH | BN | BD | ||
| 1/2" | 15 | 89 | 11.2 | 30 | 35.1 | 16 | 22.4 | 60.5 | 15.8 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.5 | 12.7 | 38 | 42.9 | 16 | 27.7 | 69.9 | 15.8 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108 | 14.2 | 49 | 50.8 | 18 | 34.5 | 79.3 | 15.8 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.5 | 15.7 | 59 | 63.5 | 21 | 43.2 | 88.9 | 15.8 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127 | 17.5 | 65 | 73.2 | 22 | 49.5 | 98.6 | 15.8 | 4 | 1/2" | 1.4 | 3.1 |
| 2" | 50 | 152.5 | 19.1 | 78 | 91.9 | 25 | 62 | 120.7 | 19.1 | 4 | 5/8" | 2.2 | 4.8 |
| 2-1/2" | 65 | 178 | 22.4 | 90 | 104.6 | 28 | 74.7 | 139.7 | 19.1 | 4 | 5/8" | 3.5 | 7.7 |
| 3" | 80 | 190.5 | 23.9 | 108 | 127 | 30 | 90.7 | 152.4 | 19.1 | 4 | 5/8" | 3.8 | 8.4 |
| 3-1/2" | 90 | 216 | 23.9 | 122 | 139.7 | 32 | 103.4 | 177.8 | 19.1 | 8 | 5/8" | 5 | 11 |
| 4" | 100 | 228.5 | 23.9 | 135 | 157.2 | 33 | 116.1 | 190.5 | 19.1 | 8 | 5/8" | 5.6 | 12.3 |
| 5" | 125 | 254 | 23.9 | 164 | 185.7 | 37 | 143.8 | 215.9 | 22.4 | 8 | 3/4" | 6.5 | 14.3 |
| 6" | 150 | 279.5 | 25.4 | 192 | 215.9 | 40 | 170.7 | 241.3 | 22.4 | 8 | 3/4" | 8.1 | 18 |
| 8" | 200 | 343 | 28.4 | 246 | 269.7 | 45 | 221.5 | 298.5 | 22.4 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.5 | 30.2 | 305 | 323.9 | 49 | 276.4 | 362 | 25.4 | 12 | 7/8" | 18.4 | 40 |
| 12" | 300 | 482.5 | 31.8 | 365 | 381 | 56 | 327.2 | 431.8 | 25.4 | 12 | 7/8" | 28.5 | 63 |
| 14" | 350 | 533.5 | 35.1 | 400 | 412.8 | 57 | 359.2 | 476.3 | 28.5 | 12 | 1" | 37.5 | 83 |
| 16" | 400 | 597 | 36.6 | 457 | 469.9 | 64 | 410.5 | 539.8 | 28.5 | 16 | 1" | 44.5 | 98 |
| 18" | 450 | 635 | 39.6 | 505 | 533.4 | 68 | 461.8 | 577.9 | 31.8 | 16 | 1 1/8" | 54 | 119 |
| 20" | 500 | 698.5 | 42.9 | 559 | 584.2 | 73 | 513.1 | 635 | 31.8 | 20 | 1 1/8" | 72 | 158 |
| 24" | 600 | 813 | 47.8 | 663 | 692.2 | 83 | 616 | 749.3 | 35.1 | 20 | 1 1/4" | 95 | 209 |
