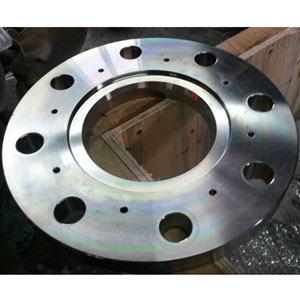

DIN2501 Stainless Steel Interface Flange, 2 Inch, 150LB
Model Number: LF 16 IF 02
Key Specifications / Features
China DIN2501 Stainless Steel Interface Flange: ASTM A182 F304, Size 2 Inch, 150LB Pressure and Standard
DIN 2501 or according to customers' drawing.
Detail Information
Keywords: DIN 2501 Interface Flange Stailness Steel A182 F304 PN16 DN50.
Product: Stainless Steel Interface Flange.
Material: ASTM A182 F304.
Size: DN 50 (2 Inch).
Pressure: 150 LB (PN 16).
Standard: DIN 2501 or according to customers' drawing.
| Pipe Size (inches) |
Flange Outside Diameter (inches) |
Pipe Outside Diameter (inches) |
Number of Bolt Holes | Bolt Hole Diameter (inches) |
Bolt Circle (inches) |
| 1/2 | 3-1/2 | 0.84 | 4 | 5/8 | 2-3/8 |
| 3/4 | 3-7/8 | 1.05 | 4 | 5/8 | 2-3/4 |
| 1 | 4-1/4 | 1.32 | 4 | 5/8 | 3-1/8 |
| 1-1/4 | 4-5/8 | 1.66 | 4 | 5/8 | 3-1/2 |
| 1-1/2 | 5 | 1.90 | 4 | 5/8 | 3-7/8 |
| 2 | 6 | 2.38 | 4 | 3/4 | 4-3/4 |
| 2-1/2 | 7 | 2.88 | 4 | 3/4 | 5-1/2 |
| 3 | 7-1/2 | 3.50 | 4 | 3/4 | 6 |
| 3-1/2 | 8-1/2 | 4.00 | 8 | 3/4 | 7 |
| 4 | 9 | 4.50 | 8 | 3/4 | 7-1/2 |
| 5 | 10 | 5.56 | 8 | 7/8 | 8-1/2 |
| 6 | 11 | 6.63 | 8 | 7/8 | 9-1/2 |
| 8 | 13-1/2 | 8.63 | 8 | 7/8 | 11-3/4 |
| 10 | 16 | 10.75 | 12 | 1 | 14-1/4 |
| 12 | 19 | 12.75 | 12 | 1 | 17 |
| 14 | 21 | 14.00 | 12 | 1-1/8 | 18-3/4 |
| 16 | 23-1/2 | 16.00 | 16 | 1-1/8 | 21-1/4 |
| 18 | 25 | 18.00 | 16 | 1-1/4 | 22-3/4 |
| 20 | 27-1/2 | 20.00 | 20 | 1-1/4 | 25 |
| 24 | 32 | 24.00 | 20 | 1-3/8 | 29-1/2 |
