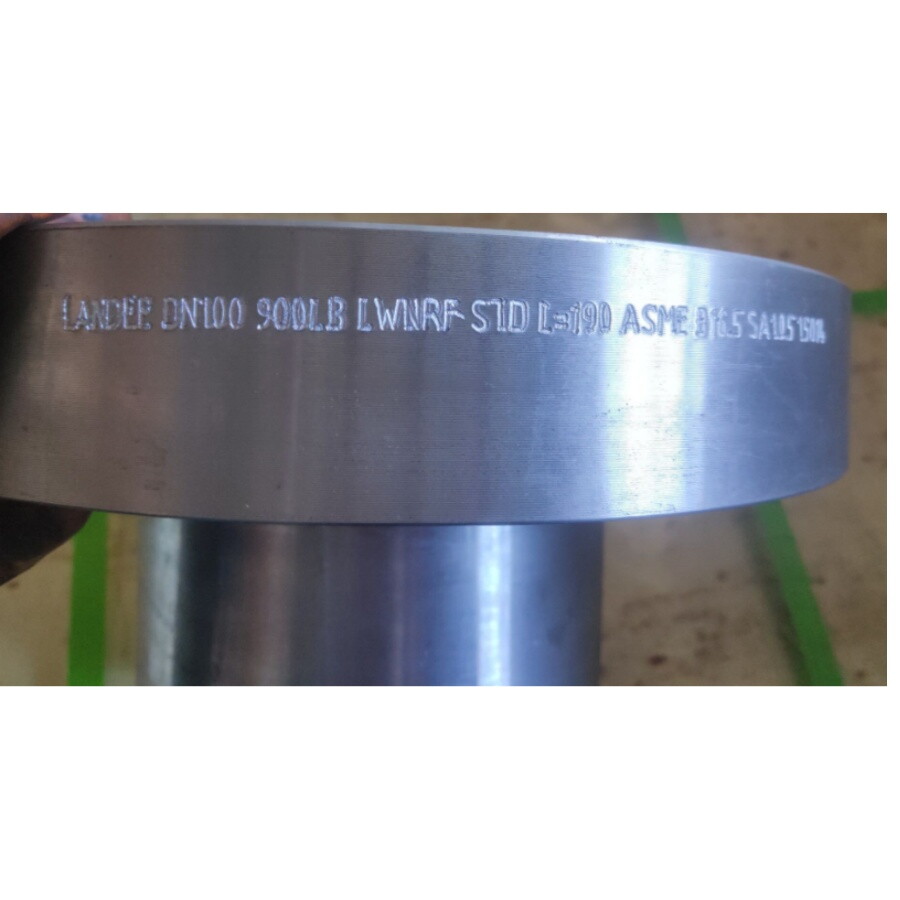

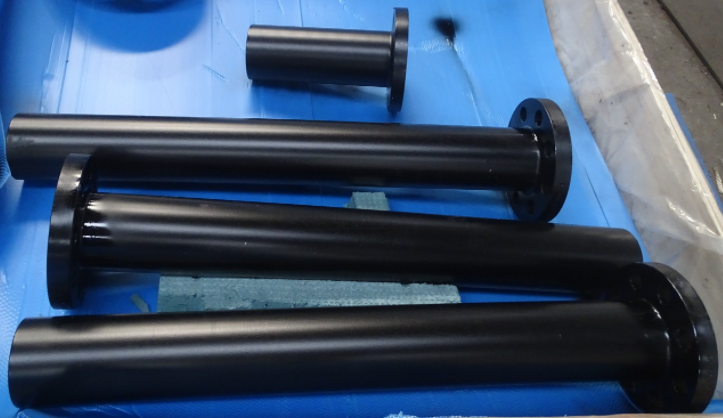

Carbon Steel Long Weld Neck Flange, 1/2-160 IN, DN15-DN4000
Model Number: LF-240116-WNF-01
Key Specifications / Features
Our long weld neck flanges are manufactured from high-quality forged carbon steel, meeting standards such as ASTM A105, A181, A516, and A694. With a size range from 1/2 to 160 inches (DN15 to DN4000), these flanges conform to international specifications, including ASME B16.5, BS 4504, EN 1092, and DIN 2631. The long weld neck design offers a reinforced connection suitable for demanding applications in various industries.
Detail Information
Product Name: Forged Carbon Steel Long Weld Neck Flange
Type: Weld Neck Flange
Material: Forged Steel
Carbon Steel: ASTM A105, ASTM A181, ASTM A516 GR.60, ASTM A516 GR.70, ASTM A694 F42, F46, F52, F56, F60, F65, F70, ST37, ST45.8, C22.8, S235, S235JRG2, P235GH, P245GH, P250GH, P265GH, P355GH, S355J2, 16MN, 20MN, Q235, 20#, CT20, SS 400
Size Range: 1/2 - 160 Inch, DN15-DN4000
Length: According to the Client's Requirement
Standard: ANSI/ASME B16.5, ANSI/ASME B16.47, BS 4504, BS 3293, EN 1092, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, JIS B2220, SABS / SANS 1123, GOST / ГОСТ 12821-80 Flange, MSS SP-44 FLANGE, API 6A, 6B, 6BX weld neck FLANGE, ISO 7005 Weld neck flange, NFE 29203 Weld neck flange, KS B1503, UNI 2280-67, UNI 2281-67, UNI 2282-67, UNI 2283-67, UNI 2284-67, HG20595, AS2129.
