ASTM A182 WN Flange, 150 LB, 3 Inch, EN1092-1 Type 11
Model Number: LF 16 WNF 46
Key Specifications / Features
China ASTM A182 F316L WN Flange Manufacturer Landeeflange offers ASTM A182 F316L WN Flange, 150 LB (PN 16), 3 Inch (DN 80), Standard EN1092-1 Type11.
Detail Information
Product: WN FLANGE.
Material: ASTM A182 F316L.
Class: 150 LB.
Size: 3 Inch.
Standard: EN1092-1 Type 11.
Material: ASTM A182 F316L.
Class: 150 LB.
Size: 3 Inch.
Standard: EN1092-1 Type 11.

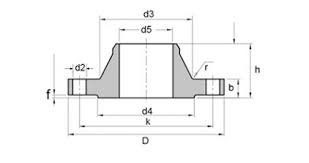

| CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | 43 |
| DIA D |
90 | 95 | 95 | 120 | 120 | 135 |
| THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | 36.6 | |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| H | 46 | 51 | 52 | 60 | 60 | 73 |
| 47.6 | 52.6 | 58.4 | 66.4 | 66.4 | 79.4 | |
| NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
