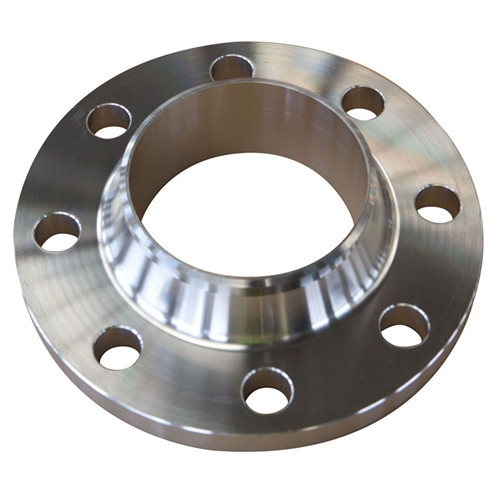

ASTM A182 Welding Neck Flange, SCH80, 10 Inch, 900LBS, RF
Key Specifications / Features
China Welding Neck Flange Manufacturer Landeeflange offers ASTM A182 Welding Neck Flange, 10 Inch (DN 250), 900LBS, SCH80, ASTM A182 F304L, RF Ends.
Request a quote
Detail Information
Product: Welding Neck Flange.
Material: ASTM A182 F304L.
Standard: ASME B16.5.
Thickness: SCH80.
Size: 10 Inch (DN 250).
Pressure: 900LBS.
Ends: RF.
Material: ASTM A182 F304L.
Standard: ASME B16.5.
Thickness: SCH80.
Size: 10 Inch (DN 250).
Pressure: 900LBS.
Ends: RF.
| CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | 43 |
| DIA D |
90 | 95 | 95 | 120 | 120 | 135 |
| THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | 36.6 | |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| H | 46 | 51 | 52 | 60 | 60 | 73 |
| 47.6 | 52.6 | 58.4 | 66.4 | 66.4 | 79.4 | |
| NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
