ASTM A182 Stainless Steel Long Weld Neck Flange
Model Number: LF 14 WNF 05
Key Specifications / Features
China ASTM A182 Stainless Steel Long Weld Neck Flange: ASTM A182 F316, F316L, F316H, F310, F321 Weld Neck Flanges, 150LB-2500LB, 1/2-56 Inch, JIS B2312.
ASTM A182 F316L Weld Neck Flange
ASTM A182 F316 Weld Neck Flange
Stainless Steel Weld Neck Flange
JIS B2312 Weld Neck Flange
150LB Weld Neck Flange
2500LB Weld Neck Flange
1/2 Inch Weld Neck Flange
ASTM A182 F316H Weld Neck Flange
56 Inch Weld Neck Flange
ASTM A182 F310 Weld Neck Flange
ASTM A182 F321 Weld Neck Flange
Detail Information
Product: Stainless Steel Long Weld Neck Flange.
Type: Weld Neck Flange.
Materials: ASTM A182, Stainless Steel.
Grades: F316, F316L, F316H, F310, F321.
Standards: JIS B2312.
Pressure: 150LB-2500LB.
Size: 1/2-56 Inch (DN15-DN1400).

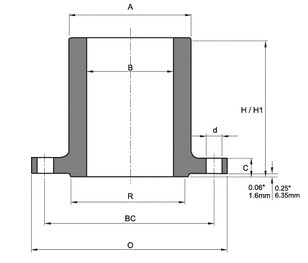

| Nominal Pipe Size | Outside Diameter | Thickness of Flange Min. | O.D. of Raised Face | Hub Diameter at Bevel | Diameter of Bore | Length Through Hub | Diameter of Bolt Circle | Number of Holes | Diameter of Holes | |
| O | C | R | A | B | H | H1 | BC | d | ||
| 1" | 149. 5 | 28.6 | 50.8 | 52.4 | 25.4 | 228. 6 | 304. 8 | 101. 6 | 4 | 25.5 |
| 1-1/4" | 159. 0 | 28.6 | 63.5 | 63.5 | 31.8 | 228. 6 | 304. 8 | 111. 1 | 4 | 25.5 |
| 1-1/2" | 178. 0 | 31.8 | 73 | 69.9 | 38.1 | 228. 6 | 304. 8 | 123. 8 | 4 | 28.5 |
| 2" | 216. 0 | 38.1 | 92.1 | 104. 8 | 50.8 | 228. 6 | 304. 8 | 165. 1 | 8 | 25.5 |
| 2-1/2" | 244. 5 | 41.3 | 104. 8 | 123. 8 | 63.5 | 228. 6 | 304. 8 | 190. 5 | 8 | 28.5 |
| 3" | 241. 5 | 38.1 | 127. 0 | 127. 0 | 76.2 | 228. 6 | 304. 8 | 190. 5 | 8 | 25.5 |
| 4" | 292. 0 | 44.5 | 157. 2 | 158. 7 | 101. 6 | 228. 6 | 304. 8 | 235. 0 | 8 | 31.8 |
| 5" | 349. 5 | 50.8 | 185. 7 | 190. 5 | 127. 0 | 228. 6 | 304. 8 | 279. 4 | 8 | 35.1 |
| 6" | 381. 0 | 55.6 | 215. 9 | 235. 0 | 152. 4 | 228. 6 | 304. 8 | 317. 5 | 12 | 31.8 |
| 8" | 470. 0 | 63.5 | 269. 9 | 298. 5 | 203. 2 | 228. 6 | 304. 8 | 393. 7 | 12 | 38.1 |
| 10" | 546. 0 | 69.9 | 323. 9 | 368. 3 | 254. 0 | 228. 6 | 304. 8 | 469. 9 | 16 | 38.1 |
| 12" | 609. 5 | 79.4 | 381. 0 | 419. 1 | 304. 8 | 228. 6 | 304. 8 | 533. 4 | 20 | 38.1 |
| 14" | 641. 5 | 85.7 | 412. 8 | 450. 9 | 355. 6 | 228. 6 | 304. 8 | 558. 8 | 20 | 41 |
| 16" | 705. 0 | 88.9 | 469. 9 | 508. 0 | 406. 4 | 228. 6 | 304. 8 | 616. 0 | 20 | 44.5 |
| 18" | 787. 5 | 101. 6 | 533. 4 | 565. 2 | 457. 2 | 228. 6 | 304. 8 | 685. 8 | 20 | 50.8 |
| 20" | 857. 5 | 108. 0 | 584. 2 | 622. 3 | 508. 0 | 228. 6 | 304. 8 | 749. 3 | 20 | 54 |
| 24" | 1014.5 | 139. 7 | 692. 2 | 749. 3 | 609. 6 | 228. 6 | 304. 8 | 901. 7 | 20 | 66.5 |
