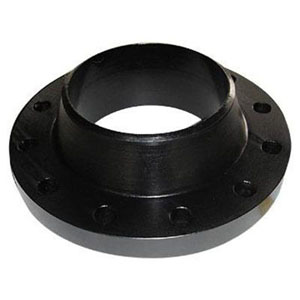

ASTM A105 WN Flange, 6 Inch, 600 LB, RF BW
Model Number: LF 14 WNF 28
Key Specifications / Features
China ASTM A105 WN Flange Manufacturer: Carbon Steel ASTM A105 WN Flanges, RF, Butt Welded End, 6 Inch (DN150), 600 LB (PN100), SCH 80, Black Coating.
Detail Information
Product: ASTM A105 Carbon Steel Welded Neck Flange.
Material: ASTM A105.
Face: RF.
Ends: BW.
Pressure: 600 LB (PN100).
Schedule: SCH 80.
Size: 6" (DN150).
Surface Finish: Black Coating.

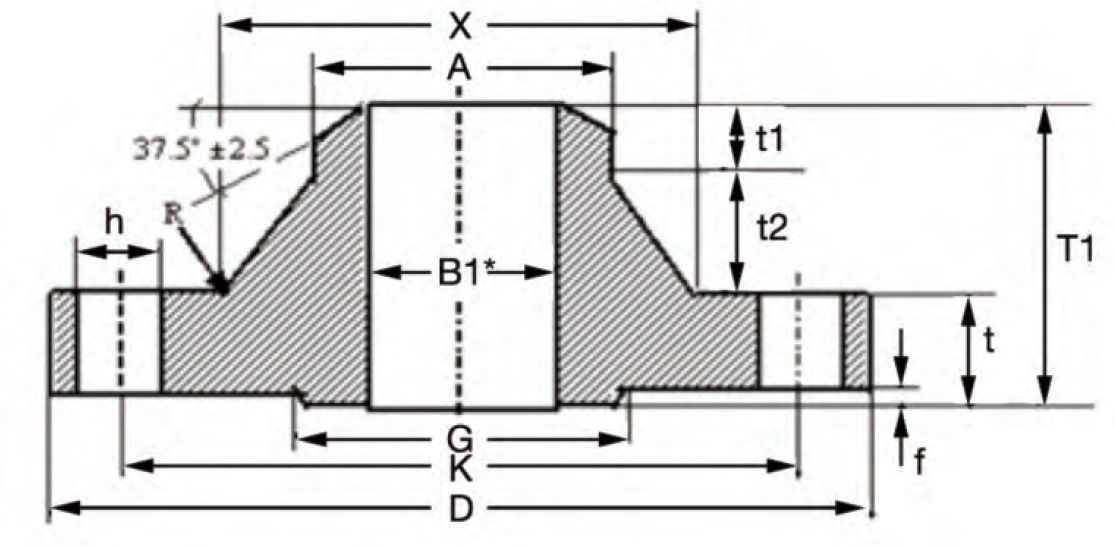

| Size | Outside Diam. |
Bore Diam. |
Thickness | Total Thickness |
Neck | Hub | Holes | Raised Face | ||||||||
| Base Diam. |
Thickness | Thickness | Diam. | Radius | Diam. | No. | P.C.D | Outside Diam. |
Thickness | Net Weight |
||||||
| mm | inch | D | B1* | t | T1 | X | t2 | t1 | A | R | h | n | K | G | f | kg |
| 15 | 1/2 | 88.90 | 15.75 | 11.18 | 47.75 | 30.23 | 29.21 | 7.37 | 21.34 | 3.05 | 15.75 | 4 | 60.45 | 35.05 | 1.52 | 0.49 |
| 20 | 3/4 | 98.55 | 20.83 | 12.70 | 52.32 | 38.10 | 31.75 | 7.87 | 26.67 | 3.05 | 15.75 | 4 | 69.85 | 42.93 | 1.52 | 0.72 |
| 25 | 1 | 107.95 | 26.67 | 14.22 | 55.63 | 49.28 | 33.02 | 8.38 | 33.53 | 3.05 | 15.75 | 4 | 79.25 | 50.80 | 1.52 | 1.03 |
| 32 | 1 1/4 | 117.35 | 35.05 | 15.75 | 57.15 | 58.67 | 33.02 | 8.38 | 42.16 | 4.83 | 15.75 | 4 | 88.90 | 63.50 | 1.52 | 1.34 |
| 40 | 1 1/2 | 127.00 | 40.89 | 17.53 | 61.98 | 65.02 | 35.56 | 8.89 | 48.26 | 6.35 | 15.75 | 4 | 98.55 | 73.15 | 1.52 | 1.74 |
| 50 | 2 | 152.40 | 52.58 | 19.05 | 63.50 | 77.72 | 35.56 | 8.89 | 60.45 | 7.87 | 19.05 | 4 | 120.65 | 91.95 | 1.52 | 2.60 |
| 65 | 2 1/2 | 177.80 | 62.74 | 22.35 | 69.85 | 90.42 | 38.10 | 9.40 | 73.15 | 7.87 | 19.05 | 4 | 139.70 | 104.65 | 1.52 | 4.17 |
| 80 | 3 | 190.50 | 77.93 | 23.88 | 69.85 | 107.95 | 36.83 | 9.14 | 88.90 | 9.65 | 19.05 | 4 | 152.40 | 127.00 | 1.52 | 4.99 |
| 90 | 3 1/2 | 215.90 | 90.17 | 23.88 | 71.37 | 122.17 | 38.10 | 9.40 | 101.60 | 9.65 | 19.05 | 8 | 177.80 | 139.70 | 1.52 | 6.18 |
| 100 | 4 | 228.60 | 102.26 | 23.88 | 76.20 | 134.87 | 41.91 | 10.41 | 114.30 | 11.18 | 19.05 | 8 | 190.50 | 157.23 | 1.52 | 6.98 |
| 125 | 5 | 254.00 | 128.19 | 23.88 | 88.90 | 163.58 | 52.07 | 12.95 | 141.22 | 11.18 | 22.35 | 8 | 215.90 | 185.67 | 1.52 | 8.72 |
| 150 | 6 | 279.40 | 154.05 | 25.40 | 88.90 | 192.02 | 50.80 | 12.70 | 168.40 | 12.70 | 22.35 | 8 | 241.30 | 215.90 | 1.52 | 10.74 |
| 200 | 8 | 342.90 | 202.72 | 28.45 | 101.60 | 246.13 | 58.42 | 14.73 | 219.20 | 12.70 | 22.35 | 8 | 298.45 | 269.75 | 1.52 | 17.68 |
| 250 | 10 | 406.40 | 254.51 | 30.23 | 101.60 | 304.80 | 57.15 | 14.22 | 273.05 | 12.70 | 25.40 | 12 | 361.95 | 323.85 | 1.52 | 24.25 |
| 300 | 12 | 482.60 | 304.80 | 31.75 | 114.30 | 365.25 | 66.04 | 16.51 | 323.85 | 12.70 | 25.40 | 12 | 431.80 | 381.00 | 1.52 | 36.93 |
| 350 | 14 | 533.40 | 336.55 | 35.05 | 127.00 | 400.05 | 73.66 | 18.29 | 355.60 | 12.70 | 28.45 | 12 | 476.25 | 412.75 | 1.52 | 48.88 |
| 400 | 16 | 596.90 | 387.35 | 36.58 | 127.00 | 457.20 | 72.39 | 18.03 | 406.40 | 12.70 | 28.45 | 16 | 539.75 | 469.90 | 1.52 | 60.47 |
| 450 | 18 | 635.00 | 438.15 | 39.62 | 139.70 | 504.95 | 80.01 | 20.07 | 457.20 | 12.70 | 31.75 | 16 | 577.85 | 533.40 | 1.52 | 68.37 |
| 500 | 20 | 698.50 | 488.95 | 42.93 | 144.53 | 558.80 | 81.28 | 20.32 | 508.00 | 12.70 | 31.75 | 20 | 635.00 | 584.20 | 1.52 | 84.60 |
| 600 | 24 | 812.80 | 590.55 | 47.75 | 152.40 | 663.45 | 83.82 | 20.83 | 609.60 | 12.70 | 35.05 | 20 | 749.30 | 692.15 | 1.52 | 115.33 |
