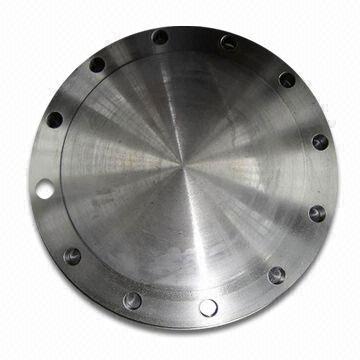

ASTM A105 Carbon Steel Blind Flange, RF, 300LB

Name: ASTM A105 Carbon Steel Blind Flange, RF, 300LB
SKU: LF 14 BF 09
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China ASTM A105 Carbon Steel RF Blind Flange Provider: ASTM A105, ASTM A350 LF1, LF2 Blind Flanges, Raised Face, 300LB, PN50, 1/2-24 Inch, DN15-DN600.

Request a quote

Detail Information

Product: RF Carbon Steel Blind Flange.

Type: Blind Flange.

Materials: ASTM A105, ASTM A350, Carbon Steel.

Grades: LF1, LF2.

Face: RF.

Standards: DIN 2636, DIN 2633.

Pressure: 300LB (PN50).

Sizes: 1/2-24 Inch (DN15-DN600).

ASTM A105 Carbon Steel Blind Flange, RF, 300LB - Landee Flange

Pipe Normal Diam.		O.D. Flange	Thk. Of Flange Min	Diameter of Raised Face	Approx. Weight


inch	dn	O	C	G	KG/PCS	LB/PCS
1/2"	15	95.5	14.2	35.1	0.8	1.8
3/4"	20	117. 5	15.7	42.9	1.2	2.6
1"	25	124. 0	17.5	50.8	1.5	3.3
1-1/4"	32	133. 5	19.1	63.5	2	4.4
1-1/2"	40	155. 5	20.6	73.2	2.9	6.4
2"	50	165. 0	22.4	91.9	3.5	7.7
2-1/2"	65	190. 5	25.4	104.6	5.3	11.7
3"	80	209. 5	28.4	127	7.2	15.9
3-1/2"	90	228. 5	30.2	139.7	9.2	20.3
4"	100	254. 0	31.8	157.2	12.2	26.8
5"	125	279. 5	35.1	185.7	16	35.2
6"	150	317. 5	36.6	215.9	22	48.4
8"	200	381. 0	41.1	269.7	36	79.5
10"	250	444. 5	47.8	323.9	55	121
12"	300	520. 5	50.8	381	82.5	182
14"	350	584. 0	53.8	412.8	108	238
16"	400	647. 5	57.2	469.9	139	306
18"	450	711. 0	60.5	533.4	178	392
20"	500	774. 5	63.5	584.2	228	503
24"	600	914. 5	69.9	692.2	350	772
