ASME B16.5 Slip on Flange, DN 450, PN 20, Raised Face
Model Number: LF 16 SOF 10
Key Specifications / Features
China ASME B16.5 Slip on Flange Manufacturer Landeeflange offers ASME B16.5 Slip on Flange, ASTM A105, DN 450 (18 Inch), PN 20 (150 LB), Raised Face.
Detail Information
Product: Slip on Flange.
Material: ASTM A105.
Standard: ASME B16.5.
Size: 18 Inch (DN 450).
Pressure: 150LB (PN 20).
Type of Face: Raised Face.
Material: ASTM A105.
Standard: ASME B16.5.
Size: 18 Inch (DN 450).
Pressure: 150LB (PN 20).
Type of Face: Raised Face.

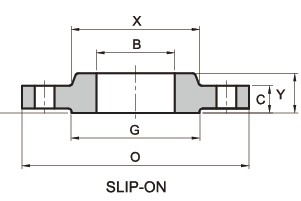

| Outside Diameter of Flange | Diameter Bore | Thickness of Flange | Diameter of Raised Face | Height of Raised Face | Diameter of Hub at Base | Length through Hub | No. of Holes | Diameter of Holes | Diameter of Bolts | Diameter of Bolt Circle | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | in | in | in | in | in | in | in | in | in | in | |
| 1/2 | 3.5 | 0.88 | 0.44 | 1.38 | 0.0625 | 1.19 | 0.62 | 4 | 0.62 | 1/2 | 2.38 |
| 3/4 | 3.88 | 1.09 | 0.5 | 1.69 | 0.0625 | 1.5 | 0.62 | 4 | 0.62 | 1/2 | 2.75 |
| 1 | 4.25 | 1.36 | 0.56 | 2.0 | 0.0625 | 1.94 | 0.69 | 4 | 0.62 | 1/2 | 3.12 |
| 1 1/4 | 4.62 | 1.70 | 0.62 | 2.5 | 0.0625 | 2.31 | 0.81 | 4 | 0.62 | 1/2 | 3.5 |
| 1 1/2 | 5 | 1.95 | 0.69 | 2.88 | 0.0625 | 2.56 | 0.88 | 4 | 0.62 | 1/2 | 3.88 |
| 2 | 6 | 2.44 | 0.75 | 3.62 | 0.0625 | 3.06 | 1 | 4 | 0.75 | 5/8 | 4.75 |
| 2 1/2 | 7 | 2.94 | 0.88 | 4.12 | 0.0625 | 3.56 | 1.12 | 4 | 0.75 | 5/8 | 5.5 |
| 3 | 7.5 | 3.57 | 0.94 | 5 | 0.0625 | 4.25 | 1.19 | 4 | 0.75 | 5/8 | 6 |
| 3 1/2 | 8.5 | 4.07 | 0.94 | 5.5 | 0.0625 | 4.81 | 1.25 | 8 | 0.75 | 5/8 | 7 |
| 4 | 9 | 4.57 | 0.94 | 6.19 | 0.0625 | 5.31 | 1.31 | 8 | 0.75 | 5/8 | 7.5 |
| 5 | 10 | 5.66 | 0.94 | 7.31 | 0.0625 | 6.44 | 1.44 | 8 | 0.88 | 3/4 | 8.5 |
| 6 | 11 | 6.72 | 1 | 8.5 | 0.0625 | 7.56 | 1.56 | 8 | 0.88 | 3/4 | 9.5 |
| 8 | 13.5 | 8.72 | 1.12 | 10.62 | 0.0625 | 9.69 | 1.75 | 8 | 0.88 | 3/4 | 11.75 |
| 10 | 16 | 10.88 | 1.19 | 12.75 | 0.0625 | 12 | 1.94 | 12 | 1 | 7/8 | 14.25 |
| 12 | 19 | 12.88 | 1.25 | 15 | 0.0625 | 14.38 | 2.19 | 12 | 1 | 7/8 | 17 |
| 14 | 21 | 14.14 | 1.38 | 16.25 | 0.0625 | 15.75 | 2.25 | 12 | 1.12 | 1 | 18.75 |
| 16 | 23.5 | 16.16 | 1.44 | 18.5 | 0.0625 | 18 | 2.5 | 16 | 1.12 | 1 | 21.25 |
| 18 | 25 | 18.18 | 1.56 | 21 | 0.0625 | 19.88 | 2.69 | 16 | 1.25 | 1 1/8 | 22.75 |
| 20 | 27.5 | 20.2 | 1.69 | 23 | 0.0625 | 22 | 2.88 | 20 | 1.25 | 1 1/8 | 25 |
| 24 | 32 | 24.25 | 1.88 | 27.25 | 0.0625 | 26.12 | 3.25 | 20 | 1.38 | 1 1/4 | 29.5 |
