ASME A105N WN Flange, 26 Inch, Class 600
Model Number: LF 14 WNF 32
Key Specifications / Features
China ASME A105N WN Flange Manufacturer: ASME A105N Weld Neck Flange（WN Flange), 26 Inch (DN650), Class 600 (PN100), ANSI B16.47A, RF, Schedule SCHXS.
Detail Information
Product: ASME A105N WN Flange.
Pressure: CL600 (PN100).
Schedule: SCHXS.
Material: ASME A105N.
Face: RF.
Standard: ANSI B16.47A.
Size: 26" (DN650).

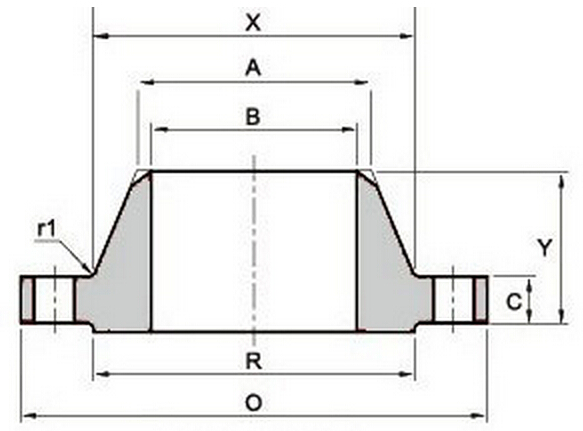

| Pipe Normal Diam. |
O.D. of Flange |
Thickness | Length Through Hub |
Diam. of Hub at Base |
Hub Diam. Top |
Raised Face Diam. |
Diam. of Bolt Circle |
No. of Bolt Holes |
Diam. of Bolt Holes |
Diam. of Bolt |
Fillet Radius Min. |
| inch | O | C | Y | X | A | R | BD | BN | BH | DB | r1 |
| 26" | 971.6 | 79.2 | 184.2 | 720.9 | 660.4 | 749.3 | 876.3 | 28 | 44.5 | 1 5/8 | 9.7 |
| 28" | 1035.1 | 85.9 | 196.9 | 774.7 | 711.2 | 800.1 | 939.8 | 28 | 44.5 | 1 5/8 | 11.2 |
| 30" | 1092.2 | 91.9 | 209.6 | 827 | 762 | 857.3 | 997 | 28 | 47.8 | 1 3/4 | 11.2 |
| 32" | 1149.4 | 98.6 | 222.3 | 881.1 | 812.8 | 914.4 | 1054.1 | 28 | 50.8 | 1 7/8 | 11.2 |
| 34" | 1206.5 | 101.6 | 231.6 | 936.8 | 863.6 | 965.2 | 1104.9 | 28 | 50.8 | 1 7/8 | 12.7 |
| 36" | 1270 | 104.6 | 241.3 | 990.6 | 914.4 | 1022.4 | 1168.4 | 32 | 53.8 | 2 | 12.7 |
| 38" | 1168.4 | 108 | 180.8 | 993.6 | 965.2 | 1028.7 | 1092.2 | 32 | 41.1 | 1 1/2 | 12.7 |
| 40" | 1238.3 | 114.3 | 193.5 | 1047.8 | 1016 | 1085.9 | 1155.7 | 32 | 44.5 | 1 5/8 | 12.7 |
| 42" | 1289.1 | 119.1 | 200.2 | 1098.6 | 1066.8 | 1136.7 | 1206.5 | 32 | 44.5 | 1 5/8 | 12.7 |
| 44" | 1352.6 | 124 | 206.2 | 1149.4 | 1117.6 | 1193.8 | 1263.7 | 32 | 47.8 | 1 3/4 | 12.7 |
| 46" | 1416.1 | 128.5 | 215.9 | 1203.5 | 1168.4 | 1244.6 | 1320.8 | 28 | 50.8 | 1 7/8 | 12.7 |
| 48" | 1466.9 | 133.4 | 223.8 | 1254.3 | 1219.2 | 1301.8 | 1371.6 | 32 | 50.8 | 1 7/8 | 12.7 |
| 50" | 1530.4 | 139.7 | 231.6 | 1305.1 | 1270 | 1358.9 | 1428.8 | 32 | 53.8 | 2 | 12.7 |
| 52" | 1581.2 | 144.5 | 238.3 | 1355.9 | 1320.8 | 1409.7 | 1479.6 | 32 | 53.8 | 2 | 12.7 |
| 54" | 1657.4 | 152.4 | 252.5 | 1409.7 | 1371.6 | 1466.9 | 1549.4 | 28 | 60.5 | 2 1/4 | 12.7 |
| 56" | 1708.2 | 153.9 | 260.4 | 1463.5 | 1422.4 | 1517.7 | 1600.2 | 28 | 60.5 | 2 1/4 | 12.7 |
| 58" | 1759 | 158.8 | 266.7 | 1514.3 | 1473.2 | 1574.8 | 1651 | 32 | 60.5 | 2 1/4 | 12.7 |
| 60" | 1809.8 | 163.6 | 273.1 | 1565.1 | 1524 | 1625.6 | 1701.8 | 32 | 60.5 | 2 1/4 | 12.7 |
