API 605 Blind Flange, RF, ASTM A694, 300LB
Model Number: LF 14 BF 01
Key Specifications / Features
China API Blind Flange Manufacturer Landee Offers API 605 Blind Flanges, ASTM A694 F42/F46/F48/F50/F52/F56/F60/F65/F70, RF, 300LB (PN50), DN15-DN600.
Raised Face Blind Flange
PN50 Blind Flange
ASTM A694 F42 Blind Flange
ASTM A694 F46 Blind Flange
DN15 Blind Flange
300LB Blind Flange
DN600 Blind Flange
ASTM A694 F48 Blind Flange
ASTM A694 F50 Blind Flange
ASTM A694 F52 Blind Flange
ASTM A694 F56 Blind Flange
ASTM A694 F60 Blind Flange
ASTM A694 F65 Blind Flange
ASTM A694 F70 Blind Flange
Detail Information
Product: API 605 RF Blind Flange.
Type: Blind Flange.
Materials: ASTM A694(F42, F46, F48, F50, F52, F56, F60, F65, F70)
Face: RF.
Standards: API 605.
Pressure: 300LB (PN50).
Size: 1/2-24 Inch (DN15-DN600).

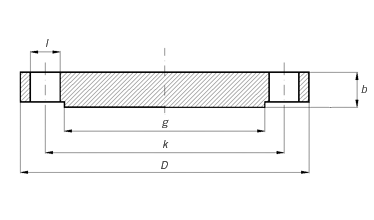

| ø | D | b | g | k | Holes | l | Kg. |
| 1/2" | 95,2 | 14,3 | 34,9 | 66,7 | 4 | 15,9 | 0,700 |
| 3/4" | 117,5 | 15,9 | 42,9 | 82,5 | 4 | 19,0 | 1,200 |
| 1" | 123,8 | 17,5 | 50,8 | 88,9 | 4 | 19,0 | 1,500 |
| 1 1/4" | 133,3 | 19,0 | 63,5 | 98,4 | 4 | 19,0 | 2,000 |
| 1 1/2" | 155,6 | 20,6 | 73,0 | 114,3 | 4 | 22,2 | 2,900 |
| 2" | 165,1 | 22,2 | 92,1 | 127,0 | 8 | 19,0 | 3,400 |
| 2 1/2" | 190,5 | 25,4 | 104,8 | 149,2 | 8 | 22,2 | 5,100 |
| 3" | 209,5 | 28,6 | 127,0 | 168,3 | 8 | 22,2 | 7,000 |
| 3 1/2" | 228,6 | 30,2 | 139,7 | 184,1 | 8 | 22,2 | 8,900 |
| 4" | 254,0 | 31,7 | 157,2 | 200,0 | 8 | 22,2 | 11,800 |
| 5" | 279,4 | 34,9 | 185,7 | 234,9 | 8 | 22,2 | 15,500 |
| 6" | 317,5 | 36,5 | 215,9 | 269,9 | 12 | 22,2 | 21,300 |
| 8" | 381,0 | 41,3 | 269,9 | 330,2 | 12 | 25,4 | 35,200 |
| 10" | 444,5 | 47,6 | 323,8 | 387,3 | 16 | 28,6 | 57,000 |
| 12" | 520,7 | 50,8 | 381,0 | 450,8 | 16 | 31,7 | 82,000 |
| 14" | 584,2 | 54,0 | 412,7 | 514,3 | 20 | 31,7 | 106,000 |
| 16" | 647,7 | 57,1 | 469,9 | 571,5 | 20 | 34,9 | 140,000 |
| 18" | 711,2 | 60,3 | 533,4 | 628,6 | 24 | 34,9 | 178,000 |
| 20" | 774,7 | 63,5 | 584,2 | 685,8 | 24 | 34,9 | 223,000 |
| 22" | 838,2 | 66,7 | 641,2 | 742,9 | 24 | 41,3 | 270,000 |
| 24" | 914,4 | 69,8 | 692,1 | 812,8 | 24 | 41,3 | 345,000 |
