ANSI B16.5 CS Lap Joint Flange, Stub Ends
Key Specifications / Features
China Carbon Steel Lap Joint Flange: ASTM A105 F304L, F316L Carbon Steel Lap Joint Flanges, Stub End, RF, ANSI B16.5, 600#, DN15-600, Anti-Rust Black.
Request a quote
Detail Information
Product: RF Carbon Steel Lap Joint Flange.
Type: Lap Joint Flange Stub Ends.
Face: RF.
Standard: ANSI B16.5.
Material: ASTM A105, Stainless Steel.
Grades: F304L, F316L.
Pressure: 600LB (PN100).
Sizes: 1/2-24 Inch(DN15-DN600).
Coating: Anti-Rust Black Coating.

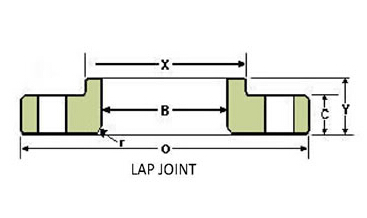

| Nominal size | Outside diam. of | Thick. of flange | Diam of hub at base | Length thru hub | Diam. of bore | Fillet radius | No. of holes | Diam. of holes | Diam. of bolts | Diam. of bolt circle | Approx. weight pounds | |
| flange | Kg | |||||||||||
| O | C | X | Y | B | r | |||||||
| 1/2" | in. | 3.75 | 0.56 | 1.5 | 0.88 | 0.9 | 0.12 | 4 | 0.62 | 1/2 | 2.62 | 2 |
| mm. | 95.3 | 14.2 | 38.1 | 22.4 | 22.9 | 3 | 15.7 | 12.7 | 66.5 | 1 | ||
| 3/4" | in. | 4.62 | 0.62 | 1.88 | 1 | 1.11 | 0.12 | 4 | 0.75 | 5/8 | 3.25 | 3 |
| mm. | 117.3 | 15.7 | 47.8 | 25.4 | 28.2 | 3 | 19.1 | 15.9 | 82.6 | 1 | ||
| 1" | in. | 4.88 | 0.69 | 2.12 | 1.06 | 1.38 | 0.12 | 4 | 0.75 | 5/8 | 3.5 | 4 |
| mm. | 124 | 17.5 | 53.8 | 26.9 | 35.1 | 3 | 19.1 | 15.9 | 88.9 | 2 | ||
| 1 1/4" | in. | 5.25 | 0.81 | 2.5 | 1.12 | 1.72 | 0.19 | 4 | 0.75 | 5/8 | 3.88 | 5 |
| mm. | 133.4 | 20.6 | 63.5 | 28.4 | 43.7 | 4.8 | 19.1 | 15.9 | 98.6 | 2 | ||
| 1 1/2" | in. | 6.12 | 0.88 | 2.75 | 1.25 | 1.97 | 0.25 | 4 | 0.88 | 3/4 | 4.5 | 7 |
| mm. | 155.4 | 22.4 | 69.9 | 31.8 | 50 | 6.4 | 22.4 | 19.1 | 114.3 | 3 | ||
| 2" | in. | 6.5 | 1 | 3.31 | 1.44 | 2.46 | 0.31 | 8 | 0.75 | 5/8 | 5 | 9 |
| mm. | 165.1 | 25.4 | 84.1 | 36.6 | 62.5 | 7.9 | 19.1 | 15.9 | 127 | 4 | ||
| 2 1/2" | in. | 7.5 | 1.12 | 3.94 | 1.62 | 2.97 | 0.31 | 8 | 0.88 | 3/4 | 5.88 | 12 |
| mm. | 190.5 | 28.4 | 100.1 | 41.1 | 75.4 | 7.9 | 22.4 | 19.1 | 149.4 | 5 | ||
| 3" | in. | 8.25 | 1.25 | 4.62 | 1.81 | 3.6 | 0.38 | 8 | 0.88 | 3/4 | 6.62 | 15 |
| mm. | 209.6 | 31.8 | 117.3 | 46 | 91.4 | 9.7 | 22.4 | 19.1 | 168.1 | 7 | ||
| 3 1/2" | in. | 9 | 1.38 | 5.25 | 1.94 | 4.1 | 0.38 | 8 | 1 | 7/8 | 7.25 | 20 |
| mm. | 228.6 | 35.1 | 133.4 | 49.3 | 104.1 | 9.7 | 25.4 | 22.2 | 184.2 | 9 | ||
| 4" | in. | 10.75 | 1.5 | 6 | 2.12 | 4.6 | 0.44 | 8 | 1 | 7/8 | 8.5 | 36 |
| mm. | 273.1 | 38.1 | 152.4 | 53.8 | 116.8 | 11.2 | 25.4 | 22.2 | 215.9 | 16 | ||
| 5" | in. | 13 | 1.75 | 7.44 | 2.38 | 5.69 | 0.44 | 8 | 1.12 | 1 | 10.5 | 61 |
| mm. | 330.2 | 44.5 | 189 | 60.5 | 144.5 | 11.2 | 28.4 | 25.4 | 266.7 | 28 | ||
| 6" | in. | 14 | 1.88 | 8.75 | 2.62 | 6.75 | 0.5 | 12 | 1.12 | 1 | 11.5 | 78 |
| mm. | 355.6 | 47.8 | 222.3 | 66.5 | 171.5 | 12.7 | 28.4 | 25.4 | 292.1 | 35 | ||
| 8" | in. | 16.5 | 2.19 | 10.75 | 3 | 8.75 | 0.5 | 12 | 1.25 | 1 1/8 | 13.75 | 110 |
| mm. | 419.1 | 55.6 | 273.1 | 76.2 | 222.3 | 12.7 | 31.8 | 28.6 | 349.3 | 50 | ||
| 10" | in. | 20 | 2.5 | 13.5 | 4.38 | 10.92 | 0.5 | 16 | 1.38 | 1 1/4 | 17 | 170 |
| mm. | 508 | 63.5 | 342.9 | 111.3 | 277.4 | 12.7 | 35.1 | 31.8 | 431.8 | 77 | ||
| 12" | in. | 22 | 2.62 | 15.75 | 4.62 | 12.92 | 0.5 | 20 | 1.38 | 1 1/4 | 19.25 | 200 |
| mm. | 558.8 | 66.5 | 400.1 | 117.3 | 328.2 | 12.7 | 35.1 | 31.8 | 489 | 91 | ||
| 14" | in. | 23.75 | 2.75 | 17 | 5 | 14.18 | 0.5 | 20 | 1.5 | 1 3/8 | 20.75 | 250 |
| mm. | 603.3 | 69.9 | 431.8 | 127 | 360.2 | 12.7 | 38.1 | 34.9 | 527.1 | 113 | ||
| 16" | in. | 27 | 3 | 19.5 | 5.5 | 16.19 | 0.5 | 20 | 1.62 | 1 1/2 | 23.75 | 365 |
| mm. | 685.8 | 76.2 | 495.3 | 139.7 | 411.2 | 12.7 | 41.1 | 38.1 | 603.3 | 166 | ||
| 18" | in. | 29.25 | 3.25 | 21.5 | 6 | 18.2 | 0.5 | 20 | 1.75 | 1 5/8 | 25.75 | 435 |
| mm. | 743 | 82.6 | 546.1 | 152.4 | 462.3 | 12.7 | 44.5 | 41.3 | 654.1 | 197 | ||
| 20" | in. | 32 | 3.5 | 24 | 6.5 | 20.25 | 0.5 | 24 | 1.75 | 1 5/8 | 28.5 | 570 |
| mm. | 812.8 | 88.9 | 609.6 | 165.1 | 514.4 | 12.7 | 44.5 | 41.3 | 723.9 | 259 | ||
| 24" | in. | 37 | 4 | 28.25 | 7.25 | 24.25 | 0.5 | 24 | 2 | 1 7/8 | 33 | 810 |
| mm. | 939.8 | 101.6 | 717.6 | 184.2 | 616 | 12.7 | 50.8 | 47.6 | 838.2 | 367 |
