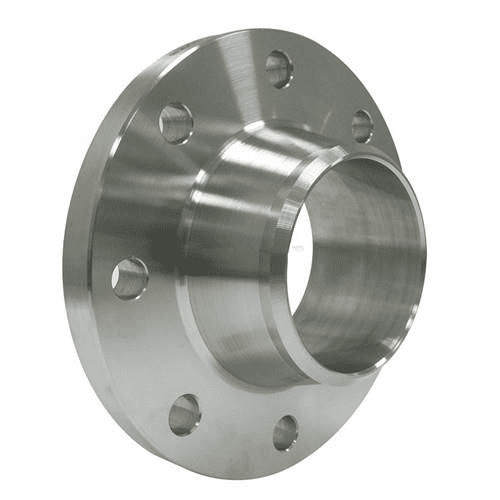

A350 Carbon Steel Weld Neck Flange, 2500LB
Model Number: LF 14 WNF 08
Key Specifications / Features
China A350 Carbon Steel Weld Neck Flange Manufacturer: ASTM A350 LF1, LF2, LF3, CL1, CL2 Weld Neck Flanges, 2500LB, PN420, 1/2-24 Inch, DN15-DN600.
2500LB Weld Neck Flange
PN420 Weld Neck Flange
DN600 Weld Neck Flange
ASTM A350 LF2 Weld Neck Flange
24 Inch Weld Neck Flange
Carbon Steel Weld Neck Flange
1/2 Inch Weld Neck Flange
DN15 Weld Neck Flange
ASTM A350 LF1 Weld Neck Flange
ASTM A350 LF3 Weld Neck Flange
ASTM A350 CL1 Weld Neck Flange
ASTM A350 CL2 Weld Neck Flange
Detail Information
Product: ASTM A350 Carbon Steel Weld Neck Flange.
Type: Weld Neck Flange.
Materials: ASTM A350, Carbon Steel.
Grades: LF1, LF2, LF3, CL1, CL2.
Pressure: 2500LB (PN420).
Sizes: 1/2-24 Inch (DN15-DN600).

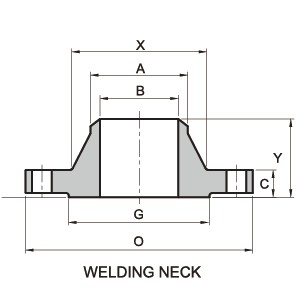

| Nominal Pipe Size | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Hub Diam. Chamfer of W.N |
Length Hub.Y | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
KG | LB | |
| inch | dn | O | C | X | A | Y | BC | BH | BN | BD | ||
| 1/2" | 15 | 133.4 | 30.2 | 42.9 | 21.3 | 73.2 | 88.9 | 22.4 | 4 | 3/4" | 3.2 | 7 |
| 3/4" | 20 | 139.7 | 31.8 | 50.8 | 26.7 | 79.2 | 95.3 | 22.4 | 4 | 3/4" | 3.6 | 8 |
| 1" | 25 | 158.8 | 35.1 | 57.2 | 33.5 | 88.9 | 108 | 25.4 | 4 | 7/8" | 5.4 | 12 |
| 1-1/4" | 32 | 184.2 | 38.1 | 73.2 | 42.2 | 95.3 | 130 | 28.4 | 4 | 1" | 7.8 | 17.2 |
| 1-1/2" | 40 | 203.2 | 44.5 | 79.2 | 48.3 | 111.3 | 146.1 | 31.8 | 4 | 1 1/8" | 11.5 | 25.4 |
| 2" | 50 | 235 | 50.8 | 95.3 | 60.5 | 127 | 171.5 | 28.4 | 8 | 1" | 19 | 42 |
| 2-1/2" | 65 | 266.7 | 57.2 | 114.3 | 73.2 | 142.7 | 196.9 | 31.8 | 8 | 1 1/8" | 24 | 52 |
| 3" | 80 | 304.8 | 66.5 | 133.4 | 88.9 | 168.1 | 228.6 | 35.1 | 8 | 1 1/4" | 42.6 | 94 |
| 4" | 100 | 355.6 | 76.2 | 165.1 | 114.3 | 190.5 | 273.1 | 41.1 | 8 | 1 1/2" | 64 | 141 |
| 5" | 125 | 419.1 | 91.9 | 203.2 | 141.2 | 228.6 | 323.9 | 47.8 | 8 | 1 3/4" | 111 | 244 |
| 6" | 150 | 482.6 | 108 | 235 | 168.4 | 273.1 | 368.3 | 53.8 | 8 | 2" | 171 | 378 |
| 8" | 200 | 552.5 | 127 | 304.8 | 219.2 | 317.5 | 438.2 | 53.8 | 12 | 2" | 261 | 576 |
| 10" | 250 | 673.1 | 165.1 | 374.7 | 273.1 | 419.1 | 539.8 | 66.5 | 12 | 2 1/2" | 485 | 1068 |
| 12" | 300 | 762 | 184.2 | 441.5 | 323.9 | 463.6 | 619.3 | 73.2 | 12 | 2 3/4" | 698 | 1539 |
