A182 Ring Spacer, Spade Flange, 300#, 1 1/2 Inch
Key Specifications / Features
China A182 Flat Face Ring Spacer, Spade Flange: ASTM A182 F316 Ring Spacers & Spade Flanges, 300LB, 1 1/2 Inch, DIN 2629, 2634, GOST 12820, FF.
Request a quote
Detail Information
Product: FF Ring Spacer & Spade Flange.
Type: Ring Spacer & Spade Flange.
Material: ASTM A182 F316.
Face: FF.
Standards: DIN 2629, DIN 2634, GOST 12820.
Schedules: Schedule 10S-Schedule 120.
Pressure: 300LB (PN50).
Size: 1 1/2 Inch (DN40).

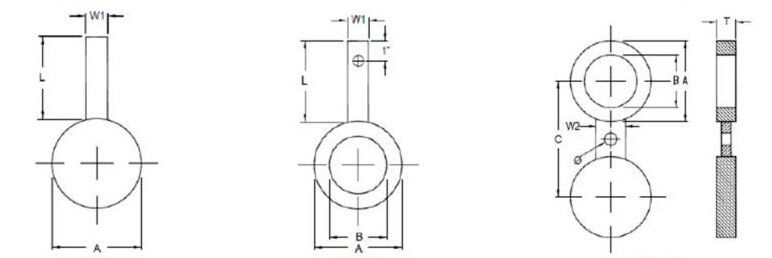

| SIZE | A | B | C | T | L | W1 | W2 | ø |
| 1/2" | 1.75 | 0.62 | 2.38 | 0.25 | 4 | 1 | 1.5 | N/A |
| 3/4" | 2.12 | 0.82 | 2.75 | 0.25 | 4 | 1 | 1.5 | N/A |
| 1" | 2.5 | 1.05 | 3.12 | 0.25 | 4 | 1 | 1.5 | N/A |
| 1 1/4" | 2.88 | 1.66 | 3.5 | 0.25 | 4 | 1 | 1.5 | N/A |
| 1 1/2" | 3.25 | 1.9 | 3.88 | 0.25 | 4 | 1 | 1.5 | N/A |
| 2" | 4 | 2.38 | 4.75 | 0.25 | 4 | 1 | 2 | N/A |
| 2 1/2" | 4.75 | 2.88 | 5.5 | 0.25 | 4 | 1 | 2 | N/A |
| 3" | 5.25 | 3.5 | 6 | 0.25 | 4 | 1 | 2.5 | N/A |
| 3 1/2" | 6.25 | 4 | 7 | 0.38 | 4 | 1 | 2.5 | 0.75 |
| 4" | 6.75 | 4.5 | 7.5 | 0.38 | 4 | 1 | 2.5 | 0.75 |
| 5" | 7.62 | 5.56 | 8.5 | 0.38 | 4 | 1 | 3 | 0.875 |
| 6" | 8.62 | 6.62 | 9.5 | 0.5 | 4 | 1 | 3 | 0.875 |
| 8" | 10.88 | 8.62 | 11.75 | 0.5 | 4 | 1 | 3 | 0.875 |
| 10" | 13.25 | 10.75 | 14.25 | 0.62 | 5 | 1 | 4 | 1 |
| 12" | 16 | 12.75 | 17 | 0.75 | 5 | 1.5 | 4 | 1 |
| 14" | 17.62 | 14 | 18.75 | 0.75 | 5 | 1.5 | 4.25 | 1.125 |
| 16" | 20.12 | 16 | 21.25 | 0.88 | 5 | 1.5 | 4.25 | 1.125 |
| 18" | 21.5 | 18 | 22.75 | 1 | 5 | 1.5 | 4.5 | 1.25 |
| 20" | 23.75 | 20 | 25 | 1.12 | 5 | 1.5 | 4.75 | 1.25 |
| 24" | 28.12 | 24 | 29.5 | 1.25 | 5 | 1.5 | 5.5 | 1.375 |
