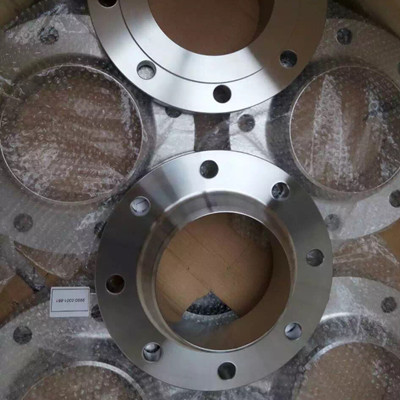

A182 F51 WN Flange, 2IN, CL1500, RF, ANSI B16.5
Model Number: LF 15 WNF 34
Key Specifications / Features
China A182 F51 Weld Neck Flange Manufacturer: ASTM A182 F51 Weld Neck Flange, 2 Inch, Pressure 1500, Standard ANSI B16.5, Flanged RF, SCH 40S.
Detail Information
Keywords: WN 1500# RF SCH 40S 2" A182 F51.
Type: WN Flange.
Material: ASTM A182 F51.
Size: 2 Inch.
Pressure: CL1500.
Standard: ANSI B16.5.
Ends: Flanged RF.
| FLANGE | HUB DIA. | BORE DIAMETER (B) |
DEPTH | LENGTH THROUGH HUB (Y) | ||||||
| NOM. | ||||||||||
| FLANGE | THICKNESS | HUB DIA. | RAISED | AT | (B1) | |||||
| OF | ||||||||||
| PIPE | DIAMETER | (Q) | AT BASE | FACE DIA. | WELDING | WELDING | WELDING | SLIP-ON | LAP | |
| NECK | SOCKET | SOCKET | ||||||||
| SIZE | (O.D.) | MIN. | (X) | (F) | POINT | AND | (D) | NECK | WELD | JOINT |
| (1) | (H) | SOCKET | AND | |||||||
| WELD | THREADED | |||||||||
| (2) | ||||||||||
| 1/ 2 | 3.50 | 0.44 | 1.19 | 1.38 | 0.84 | 0.62 | 0.38 | 1.88 | 0.62 | 0.62 |
| 3/ 4 | 3.88 | 0.50 | 1.50 | 1.69 | 1.05 | 0.82 | 0.44 | 2.06 | 0.62 | 0.62 |
| 1 | 4.25 | 0.56 | 1.94 | 2.00 | 1.32 | 1.05 | 0.50 | 2.19 | 0.69 | 0.69 |
| 1 1/ 4 | 4.62 | 0.62 | 2.31 | 2.50 | 1.66 | 1.38 | 0.56 | 2.25 | 0.81 | 0.81 |
| 1 1/ 2 | 5.00 | 0.69 | 2.56 | 2.88 | 1.90 | 1.61 | 0.62 | 2.44 | 0.88 | 0.88 |
| 2 | 6.00 | 0.75 | 3.06 | 3.62 | 2.38 | 2.07 | 0.69 | 2.50 | 1.00 | 1.00 |
| 2 1/ 2 | 7.00 | 0.88 | 3.56 | 4.12 | 2.88 | 2.47 | 0.75 | 2.75 | 1.12 | 1.12 |
| 3 | 7.50 | 0.94 | 4.25 | 5.00 | 3.50 | 3.07 | 0.81 | 2.75 | 1.19 | 1.19 |
| 31/ 2 | 8.50 | 0.94 | 4.81 | 5.50 | 4.00 | 3.55 | 0.88 | 2.81 | 1.25 | 1.25 |
| 4 | 9.00 | 0.94 | 5.31 | 6.19 | 4.50 | 4.03 | 0.94 | 3.00 | 1.31 | 1.31 |
| 5 | 10.00 | 0.94 | 6.44 | 7.31 | 5.56 | 5.05 | 0.94 | 3.50 | 1.44 | 1.44 |
| 6 | 11.00 | 1.00 | 7.56 | 8.50 | 6.63 | 6.07 | 1.06 | 3.50 | 1.56 | 1.56 |
| 8 | 13.50 | 1.12 | 9.69 | 10.62 | 8.63 | 7.98 | 1.25 | 4.00 | 1.75 | 1.75 |
| 10 | 16.00 | 1.19 | 12.00 | 12.75 | 10.75 | 10.02 | 1.31 | 4.00 | 1.94 | 1.94 |
| 12 | 19.00 | 1.25 | 14.38 | 15.00 | 12.75 | 12.00 | 1.56 | 4.50 | 2.19 | 2.19 |
| 14 | 21.00 | 1.38 | 15.75 | 16.25 | 14.00 | 13.25 | 1.63 | 5.00 | 2.25 | 3.12 |
| 16 | 23.50 | 1.14 | 18.00 | 18.50 | 16.00 | 15.25 | 1.75 | 5.00 | 2.50 | 3.44 |
| 18 | 25.00 | 1.56 | 19.88 | 21.00 | 18.00 | 17.25 | 1.94 | 5.50 | 2.69 | 3.81 |
| 20 | 27.50 | 1.69 | 22.00 | 23.00 | 20.00 | 19.25 | 2.12 | 5.69 | 2.88 | 4.06 |
| 24 | 32.00 | 1.88 | 26.12 | 27.25 | 24.00 | 23.25 | 2.50 | 6.00 | 3.25 | 4.38 |
