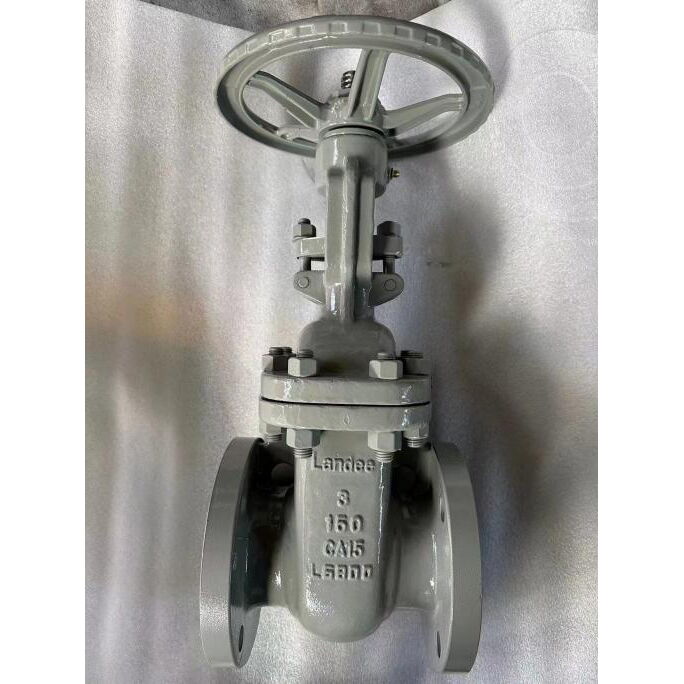

Thermal Relief Gate Valve, API 600, A216 WCB, 3 Inch, 150 LB
Model Number: LD-20240927-GTV-01
Key Specifications / Features
The API 600 Thermal Relief Gate Valve, made from ASTM A216 WCB carbon steel, is a 3-inch, 150 LB valve with RF flanged ends. It includes ASTM A182 F304 needle and check valves for precise flow control and offers 1 bar (100 kPa) relief protection against thermal expansion, making it ideal for high-temperature systems.
Detail Information
Product Name: API 600 Gate Valve with Thermal Relief Upstream
Type: Gate Valve
Design Standard: API 600
Body Material: Cast Carbon Steel ASTM A216 WCB
Wedge Material: ASTM A216 WCB + 13Cr
Seat Material: ASTM A105 + 13Cr
Needle Valve: ASTM A182 F304
Check Valve: ASTM A182 F304
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flanged as per ASME B16.5
Corrosion Allowance: 3 mm
With Thermal Relief Upstream: 1 bar or 100kPa Relief Crack Pressure
Painting: in accordance with Manufacturer's Standard (RED--FIRE FIGHTING)
