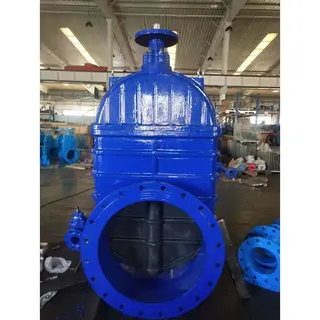

Resilient Seated Gate Valve, Ductile Iron, DN800, PN16, Gear

Name: Resilient Seated Gate Valve, Ductile Iron, DN800, PN16, Gear
SKU: LD-20260115-GTV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Resilient Seated Gate Valve Factory offers a high-quality Big Size Gate Valve designed for robust performance. This valve features a durable Ductile Iron Body and a Ductile Iron + EPDM Disc combination, ensuring reliability and longevity. With a DN800 size and PN16 pressure rating, it is suitable for large-scale industrial applications. The valve is epoxy coated to protect against corrosion, and its gear box operation provides smooth and efficient control.

Request a quote

Detail Information

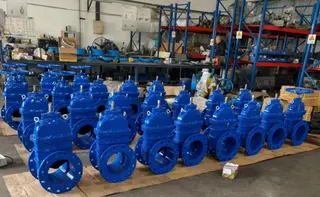

Product Name: Big Size Resilient Seated Gate Valve
Body Style: Double Flanged
Seat: Resilient Seat
Body Material: Ductile Iron
Disc Material: Ductile Iron + EPDM
Shaft Material: 2Cr13
Size: DN800
End Connection: DIN PN6 / PN10 / PN16
Pressure Ratings: 16 bar (Bidirectional Bubble-tight Shutoff)
Face to Face: BS 5163
Body (CWP): 24 bar
Coating: Epoxy Coating
Operator: Gear Box
