NPT Threaded CPVC Check Valve, DIN, ANSI, JIS, 1/2-3 Inch

Key Specifications / Features

NPT Threaded CPVC Check Valve Supplier: CPVC Check Valve, NPT Threaded, PT Threaded, BSPF Threaded, 1/2-3 Inch, DIN, ANSI, JIS, CNS, Socket Joint End.
Request a quote

Detail Infomation

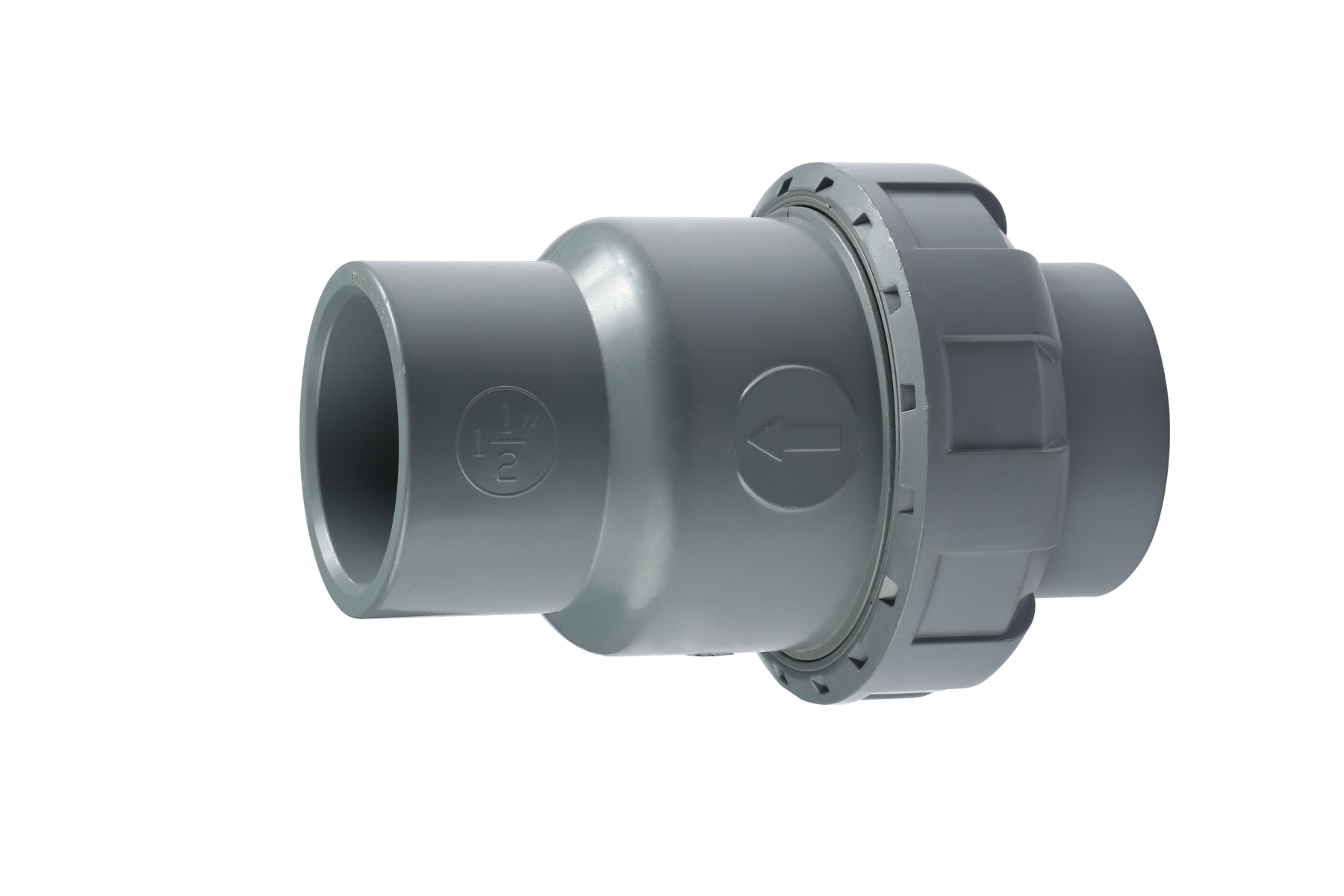

Name: NPT Threaded CPVC Check Valve.
Material: CPVC Materials.
Size: 1/2-3 Inch.
Working Pressure: 150 PSI.
Joint End: Socket.
Standard: DIN, ANSI, JIS, CNS.
Joint End: Threaded (PT/NPT/BSPF) or Ball/Half Ball.

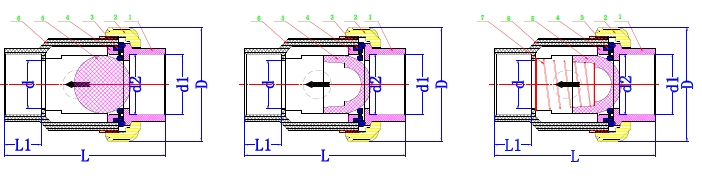

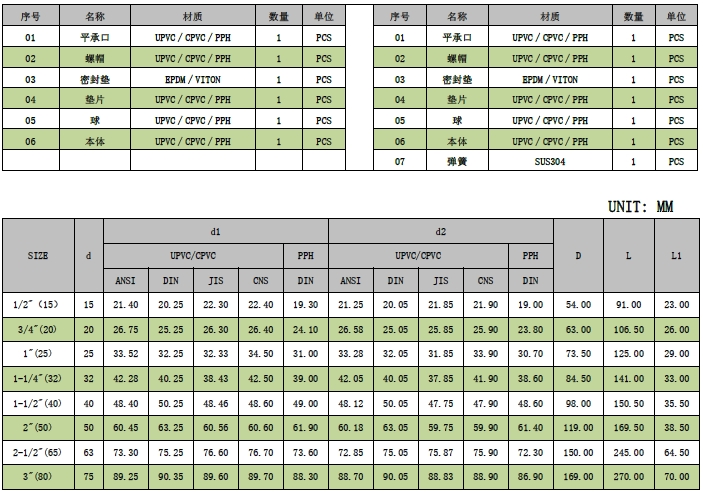

Technical Drawing

Technical Drawing
