MSS SP-67 Butterfly Valve, AWWA C606 Grooved, 300 PSI
Model Number: LD-20241210-BFV-01
Key Specifications / Features
A reliable Grooved Butterfly Valve supplier offers valves designed to MSS SP-67 standards with AWWA C606 groove connections and an ISO 5211 top flange for actuator compatibility. Rated for a working pressure of 300 PSI, these valves feature a fusion-bonded epoxy coating for superior corrosion resistance, ensuring durability in demanding applications.
Detail Information

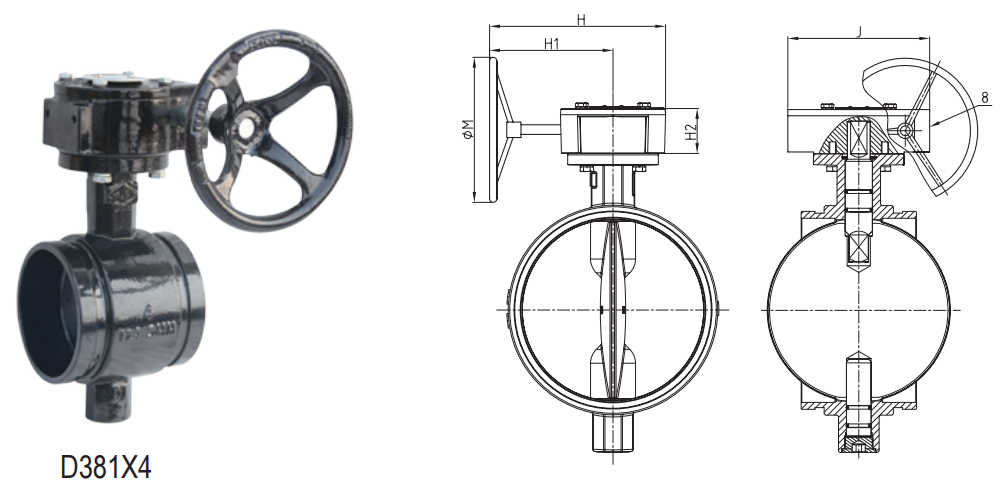

Product Item: MSS SP-67 Grooved Butterfly Valve
Design Standard: MSS SP-67
Connection Ends: Groove to AWWA C606
Top Flange Standard: ISO 5211
Stem drive by keys, parallel or diagonal square or flat head
Working Pressure: 300 PSI
175 PSI, 200 PSI and 250 PSI available upon request
Temperature Range: 0℃ to 80℃
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
