High Speed Air Bleed Valve, ASTM A536 65-45-12, 2-8 Inch
Model Number: LD-20241216-OV-01
Key Specifications / Features
The Compound High-Speed Air Bleed Valve features a durable ASTM A536 Grade 65-45-12 construction and is available in sizes from 2 to 8 inches. With a pressure range of 0.02 to 1.6 MPa, it ensures reliable air bleed performance. The valve comes with flange ends for easy installation and a fusion bonded epoxy coated surface for enhanced corrosion resistance.
Detail Information
Product Item: Compound High Speed Air Bleed Valve

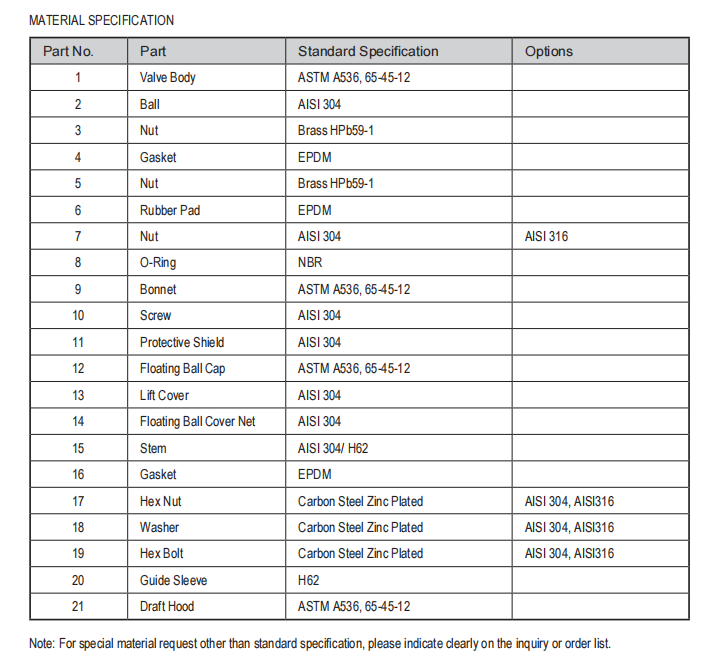

Body Material: ASTM A536 Grade 65-45-12

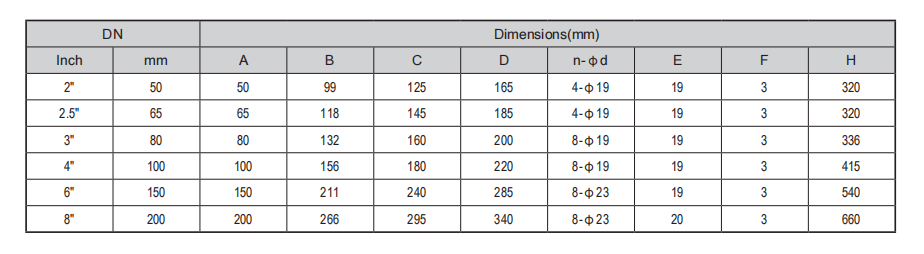

Size Range: 2-8 Inch
Working Pressure: 300 PSI
200 PSI and 250 PSI available upon request
Rated Working Pressure: 0.02 MPa - 1.6 MPa
Temperature Range: 0°C to 55°C
Connection Ends: Flange to ASME B16.1 CL 125
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
