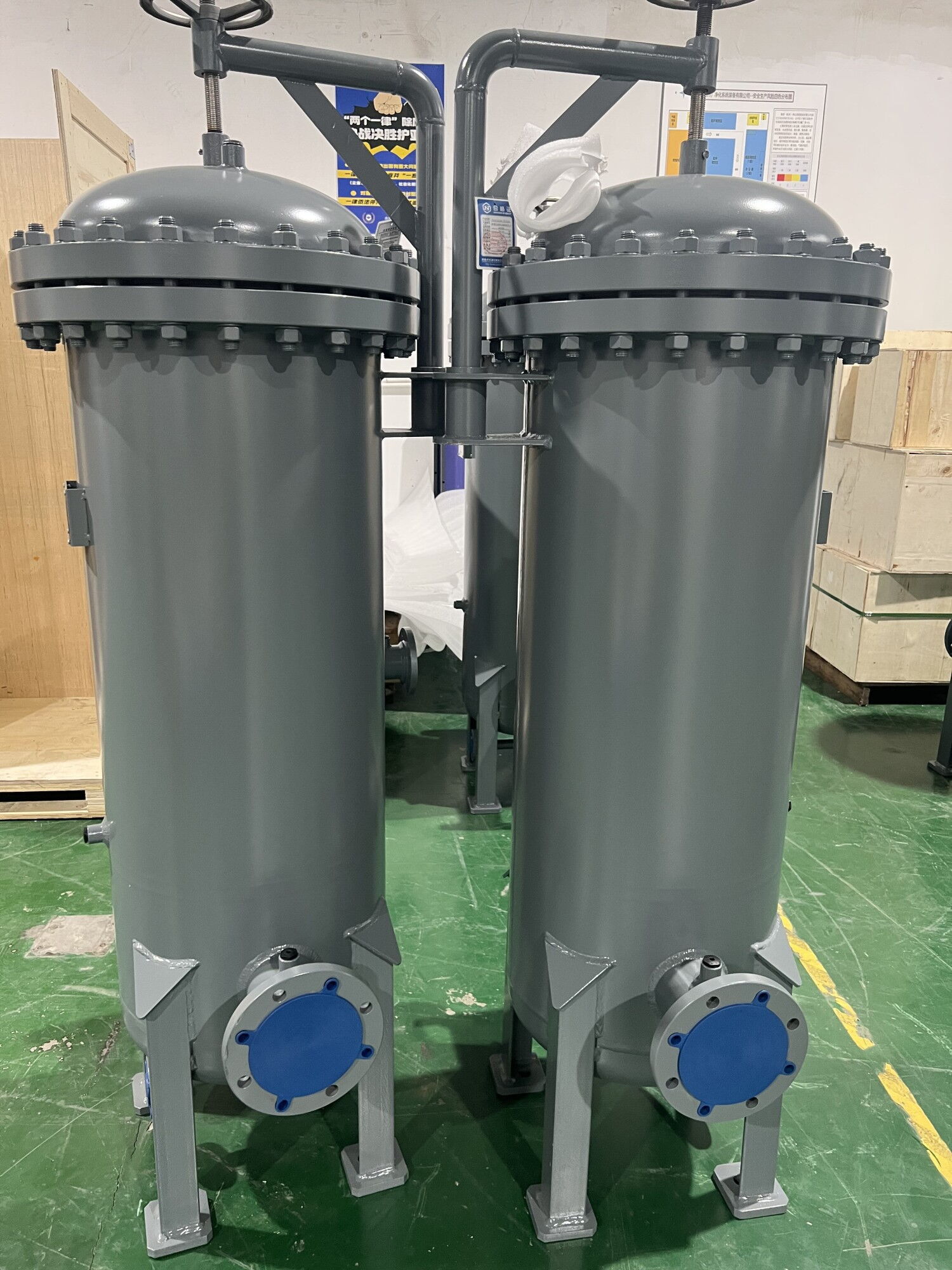

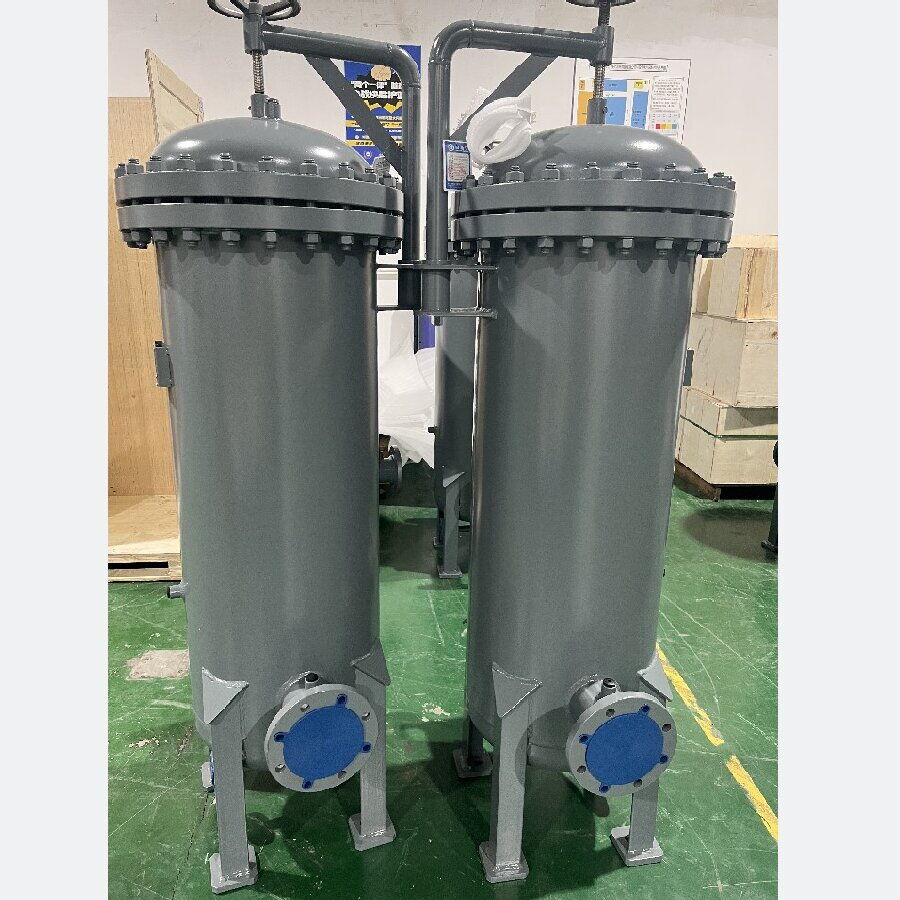

High Flow Multi-Cartridge Filter Housing, Stainless Steel 316L
Model Number: LD-20240731-OT-01
Key Specifications / Features
This High Flow Multi-Cartridge Filter Housing, supplied by a leading manufacturer in China, is constructed with a stainless steel SS 316L head, shell, and connections for superior durability and corrosion resistance. It features zinc-plated steel bolting for added strength and reliability, RF flange connections, and NPT ends for secure and leak-proof fittings.
Detail Information
Product Item: High Flow Stainless Steel 316L Multi-Cartridge Filter Housing for Industrial Applications
Materials of Construction
Head: Stainless Steel 316L
Shell: Stainless Steel 316L
Connections: Stainless Steel 316L
Bolting: Zinc Plated Steel
Connections
Inlet/Outlet
12 Around: 3 Inch ANSI RF Flange
21 Around: 4 Inch ANSI RF Flange
Vent: 1/2 Inch NPT
Drain: 1 Inch NPT
Shell O-rings: EPDM (Standard), Buna N, Silicone Elastomer, Viton1A
Maximum Operating Pressure: 50 psig (10.3 bar) @ 200 °F (93 °C)
NOTE: Maximum operating pressure ratings are vessel ratings only. Safe operating temperature and pressure will depend on filter cartridge and gasket/O-ring used.
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
