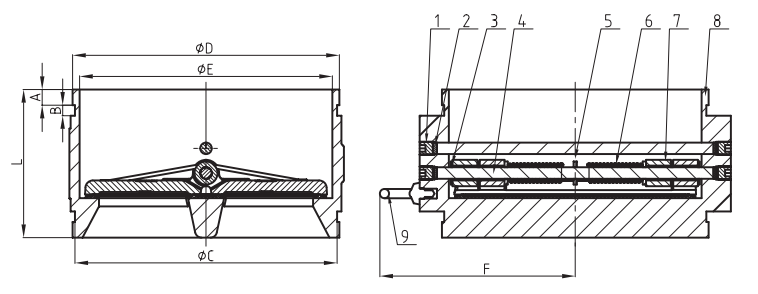

Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN
Model Number: LD-20250206-CV-02
Key Specifications / Features
The Grooved Double Door Check Valve features a robust ASTM A536 Grade 65-45-12 body, ensuring high strength and durability. Available in sizes ranging from 8 to 14 inches (DN200-DN350), with a pressure rating of 300 PSI, it is designed with grooves per AWWA C606 standards for easy installation. The valve is fusion bonded epoxy coated for enhanced corrosion resistance, making it ideal for reliable backflow prevention in water and wastewater systems.
Detail Information
Product Item: Grooved Double Door Check Valve

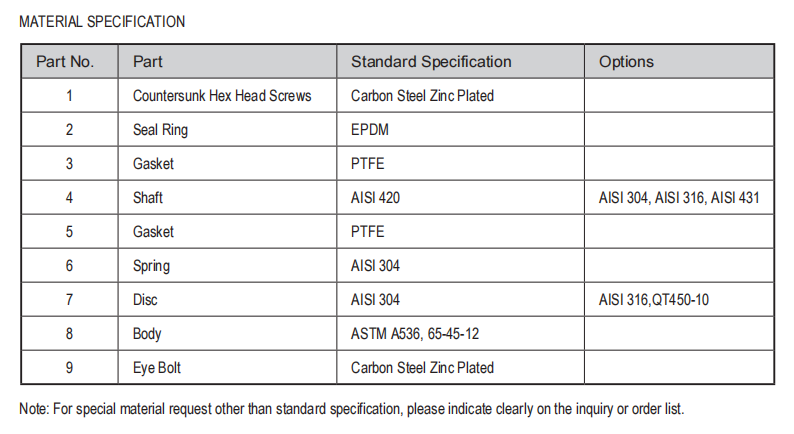

Body Material: ASTM A536 Grade 65-45-12
Disc Material: AISI 304

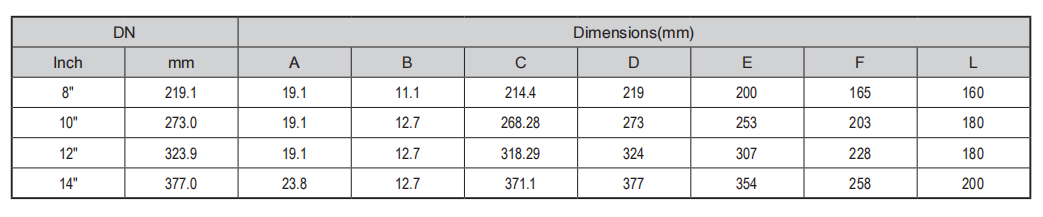

Size Range: 8-14 Inch, DN200-DN350
Working Pressure: 300 PSI (200 PSI and 250 PSI available upon request)
Temperature Range: 0°C to 80°C
Connection Ends: Groove to AWWA C606
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
