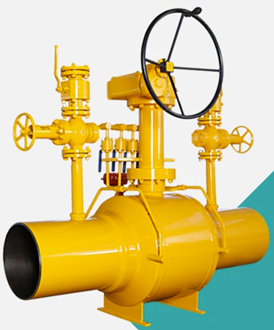

Double Bleed & Purge Ball Valve, API 6D, A105, 2 Inch, CL900
Model Number: LD-20250220-BV-01
Key Specifications / Features
The Double Bleed & Purge Ball Valve is a high-performance valve designed for precise flow control in demanding applications. Manufactured to API 6D standards, it features an ASTM A105 body for strength and durability, with an ASTM A182 F316 ball for superior corrosion resistance. The trunnion-mounted design ensures stability, while the full port provides unrestricted flow. With a 2-inch size, Class 900 LB pressure rating, and RTJ ends, this valve offers reliable performance in high-pressure systems.
Detail Information
Product Item: Double Bleed and Purge Ball Valve
Structure: Trunnion Mounted, Full Port, Double Bleed and Purge, Bidirectional Flow, Secondary Seal System
Standard: API 6D
Body Material: ASTM A105
Size: 2 Inch
Pressure Rating: Class 900 LB
Ball Material: ASTM A182 F316
Seat Ring Material: Viton
Fire Safe: API 607
Operation: Lever
Connection Type: RTJ Flanged (per ASME B16.5)
