Cast Iron, Ductile Iron Wafer Butterfly Valve, 10-25 Bar
Key Specifications / Features
Discover top-quality wafer type butterfly valves at our factory, available in cast iron, ductile iron, carbon steel, and stainless steel options. Choose from valves designed for 10 Bar, 16 Bar, or 25 Bar applications, featuring reliable EPDM and NBR seats. Find the perfect solution for your industrial needs with our diverse range of wafer-type butterfly valves.
Detail Information

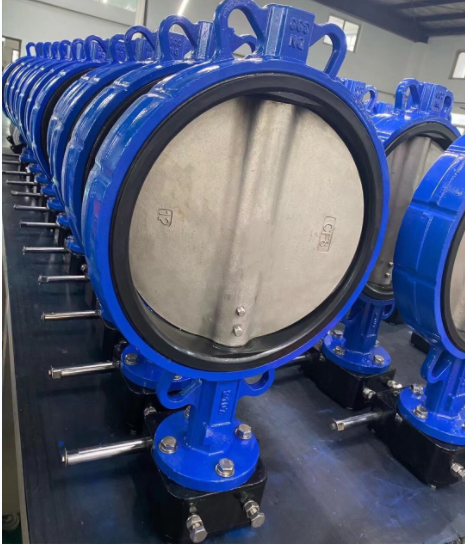

Cast Iron, Ductile Iron Wafer Type Butterfly Valves
Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Working pressure: 10 bar, 16 bar, 25 bar
Testing pressure:
Shell: 15 bar, 24 bar, 37.5 bar
Seal: 11 bar, 17.6 bar, 27.5 bar
Material:
Body: DI/CI, Carbon Steel, Stainless Steel
Disc: DI, Stainless steel 304, SS 316, AL-Bronze
Shaft: Stainless steel 410, SS 416, SS 420
Seat: EPDM, NBR
Coating: Internal and external with fusion bonded epoxy coating min250μm
Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Working pressure: 10 bar, 16 bar, 25 bar
Testing pressure:
Shell: 15 bar, 24 bar, 37.5 bar
Seal: 11 bar, 17.6 bar, 27.5 bar
Material:
Body: DI/CI, Carbon Steel, Stainless Steel
Disc: DI, Stainless steel 304, SS 316, AL-Bronze
Shaft: Stainless steel 410, SS 416, SS 420
Seat: EPDM, NBR
Coating: Internal and external with fusion bonded epoxy coating min250μm
