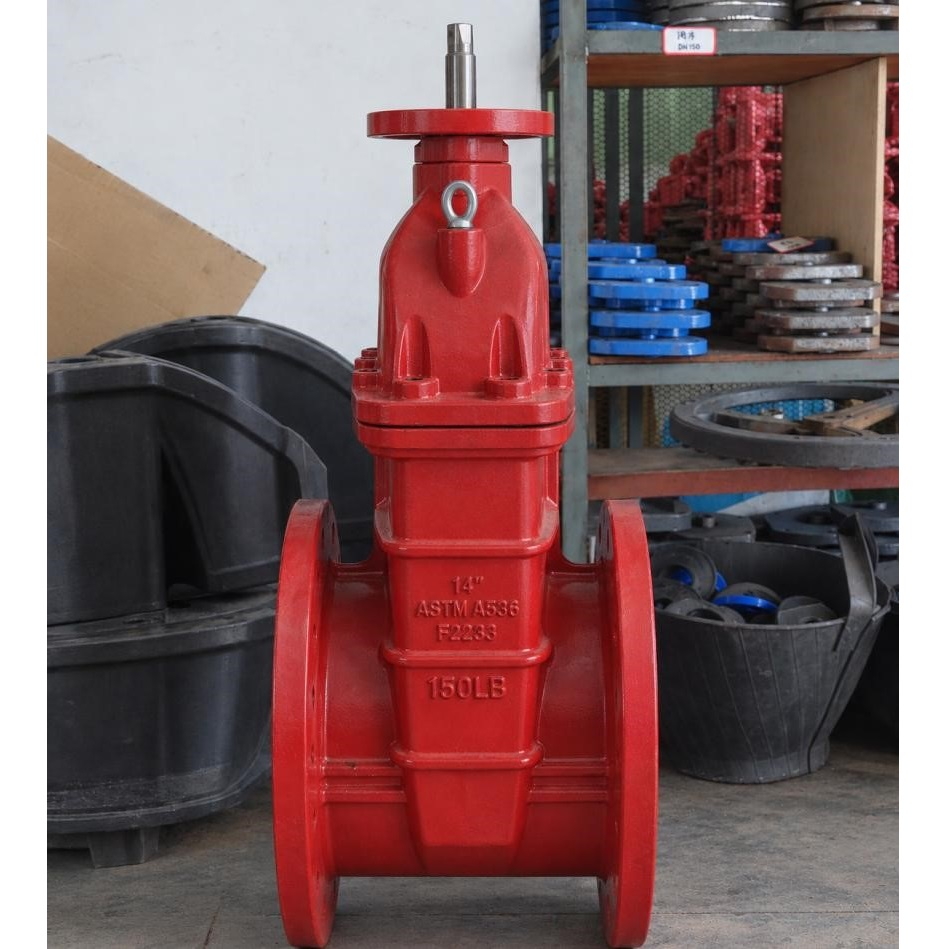

ASTM A536 Wedge Gate Valve, 14 Inch, DN350, 150 LB
Key Specifications / Features
This 14-inch DN350 Class 150 LB wedge gate valve has a 290 mm flange-to-flange length. Its body and disc are ASTM A536 ductile iron, with the disc protected by EPDM. It uses an SS 316 stem, brass stem nut and gland, and SS 316 bolts and nuts. Finished with a 250-micron red epoxy powder coating and supplied without an actuator, it suits water supply and distribution pipelines, providing dependable fluid shut-off for conventional water piping networks.
Detail Information
Product Type: Wedge Gate Valve
Flange-to-Flange Length: 290 mm
Size: 14 Inch, DN350
Pressure rating: Class 150 LB
Body Material: ASTM A536
Disc Material: ASTM A536 + EPDM
Stem Material: SS 316
Stem Nut Material: Brass
Gland Material: Brass
Bolt & Nut Material: SS 316
Actuator: Without actuators
Coating Type: Epoxy powder coating
Coating Color: Red
Coating Thickness: 250 microns
Product Description
This wedge gate valve features a 290 mm flange-to-flange dimension. Its body and disc are made of A536 ductile iron with EPDM lining on the disc. The valve adopts an SS316 stem, brass stem nut and gland, together with SS316 fasteners. It is finished with red epoxy powder coating at 250 microns thickness and supplied without actuator.
Typical Application
Designed for water supply, water distribution, and common water piping networks, offering stable on-off regulation for fluid flow.
