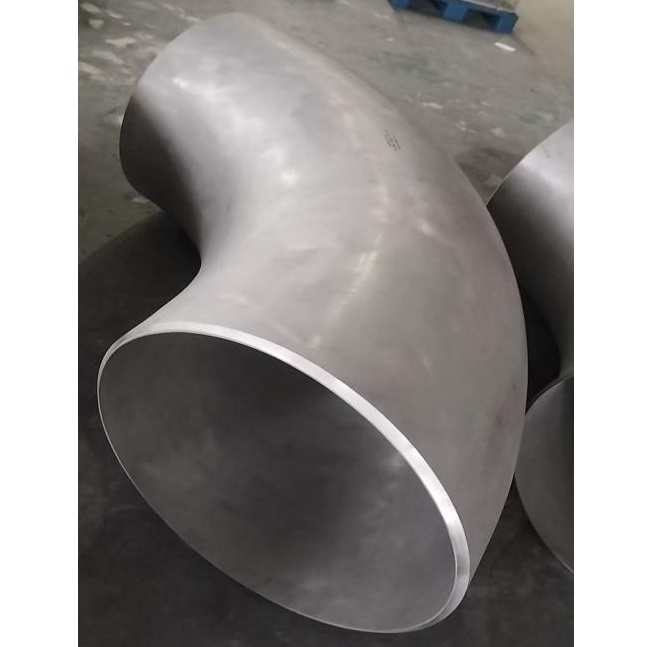

ASTM A403 WP304-S Pipe Elbow, 90 Degree, 28 Inch, SCH 20
Key Specifications / Features
This 90-degree long-radius butt-weld elbow conforms to ASME B16.9, built from ASTM A403 WP304-S stainless steel in 28-inch SCH 20. Its gentle curved profile minimizes flow turbulence while turning pipeline direction. It is engineered to butt weld seamlessly with matching large-bore SCH 20 piping. Markings, including size, schedule, and heat number, allow straightforward traceability. It works for utility, water, and process piping, and material certificates plus service suitability must be checked before use.
Detail Information
Product Type: 90° Long Radius (LR) Butt-Weld Pipe Elbow
Nominal Size: 28 inches (as marked on the fitting)
Wall Thickness Designation: Schedule 20 (SCH 20)
Material Specification: ASTM A403 WP304-S stainless steel (per visible marking)
Dimensional Standard: ASME B16.9 (per visible marking); weld-end configuration shown
Core Advantages
Smooth Direction Change: The 90° long-radius profile redirects a pipeline while providing a gradual bend geometry.
Matching Large-Bore Connection: Designed as a butt-weld fitting for compatible 28-inch Schedule 20 pipework.
304 Stainless Steel: Provides general-purpose corrosion resistance when selected for a compatible process medium.

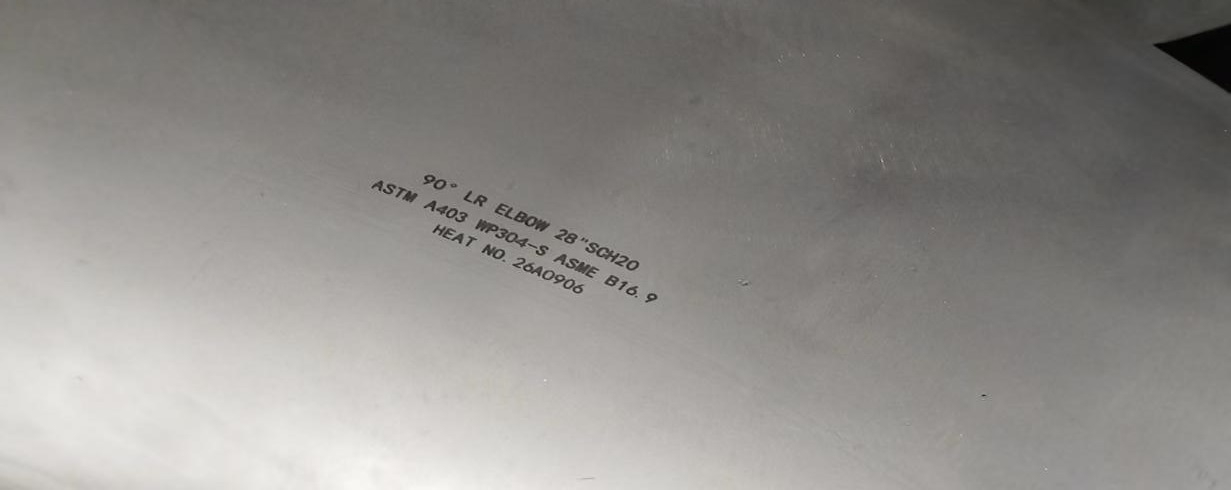

Traceable Identification: The fitting carries product specification, size, wall schedule, and heat-number markings.
Applications
For industrial stainless steel piping systems requiring a 90° change in direction, including utility lines, water-handling systems, and process pipelines. Verify material certificates, dimensional tolerances, and service requirements for the project.
