ASTM A216 WCB Wedge Gate Valve, API 600, BS 1414, 6IN, CL600
Key Specifications / Features
Discover premium quality cast steel wedge gate valves produced in various specifications including 6-inch size (DN150), designed for Class 600 LB (PN100) pressure ratings, manufactured from ASTM A216 WCB material, adhering to API 600 and BS 1414 standards. These valves feature raised face (RF) connections suitable for pressure ranges from 150 to 2500 LB, available in sizes ranging from 2 to 60 inches. Crafted from durable alloy steel and nickel alloy, ensuring reliability and performance in diverse industrial applications.
Detail Information

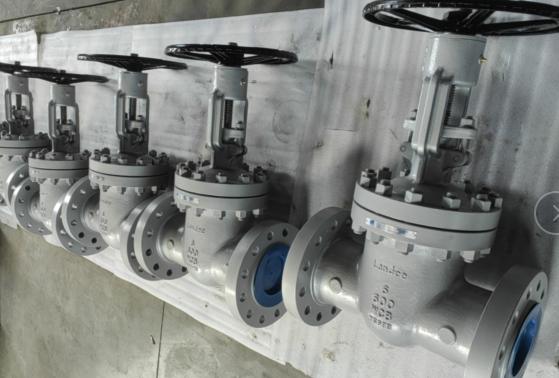

API 600 Cast steel A216 WCB Wedge Gate Valve
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
Material: ASTM A216 WCB, Cast steel
Design standard: API 600, BS 1414
End connection: RF
Product range:
1. Pressure range: CLASS 150-2500 LB
2. Nominal diameter: NPS 2-60 Inch
3. Body material: Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4. End connection: RF, RTJ, BW
5. Mode of operation: Handwheel, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device
Size: 6 Inch, DN150
Pressure: Class 600 LB, PN100
Material: ASTM A216 WCB, Cast steel
Design standard: API 600, BS 1414
End connection: RF
Product range:
1. Pressure range: CLASS 150-2500 LB
2. Nominal diameter: NPS 2-60 Inch
3. Body material: Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4. End connection: RF, RTJ, BW
5. Mode of operation: Handwheel, Gearbox, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device
