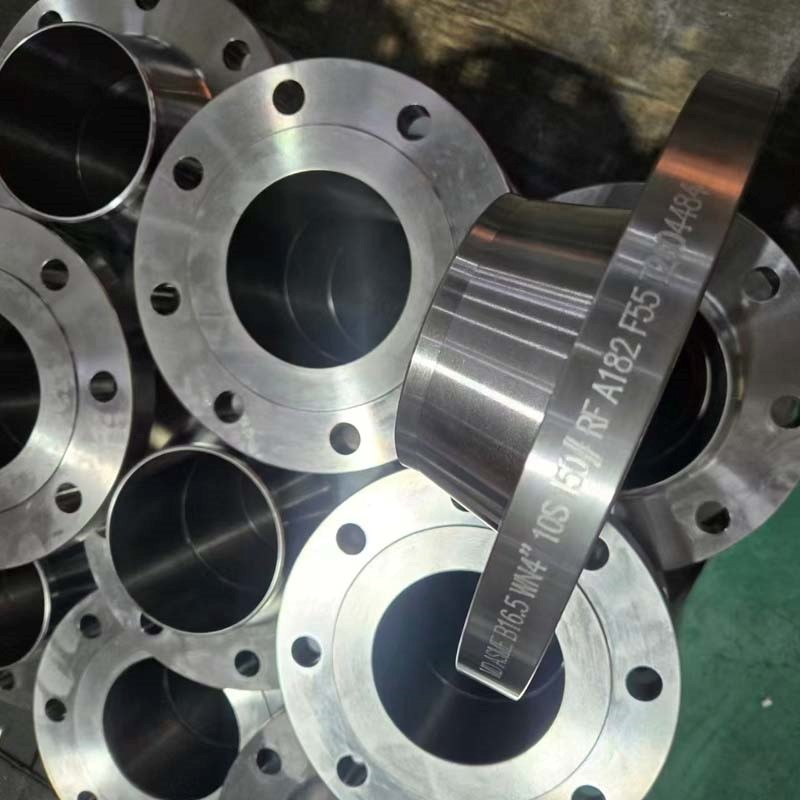

ASTM A182 F55 Weld Neck Flange, ASME B16.5, 4 Inch, 150 LB
Key Specifications / Features
Detail Information
Product Name: Super Duplex Stainless Steel Weld Neck Flange
Type: WN (Weld Neck) Flange
Nominal Size: 4 inch, DN100
Material Grade: ASTM A182 Gr. F55
Wall Schedule: SCH 10S
Design & Manufacturing Standard: ASME B16.5
Pressure Class: 150 LB
Face Finish: RF (Raised Face)
Heat No.: T204484
This weld neck flange is forged from ASTM A182 Gr. F55 super duplex stainless steel and fully complies with the ASME B16.5 specification. It features a 4-inch nominal bore, SCH10S wall thickness, a 150 lb pressure rating, and a raised face sealing surface. The tapered hub design helps reduce stress transition for butt-welded pipe connections. The RF face provides stable gasket seating. This flange is ideal for corrosive medium piping systems in chemical, marine, and oilfield service.
