ASME B16.34 Blind Valve, Carbon Steel, 12 IN, CL150, Flanged

Name: ASME B16.34 Blind Valve, Carbon Steel, 12 IN, CL150, Flanged
SKU: LD-20260305-OV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This China-based ASME B16.34 certified blind valve factory manufactures cam slide line blind valves designed for positive isolation in piping systems. The full-bore, 12-inch valves are rated for Class 150 LB service and feature robust construction with ASTM A216 WCB (cast carbon steel) or ASTM A105 (forged carbon steel) body materials. Engineered with flanged ends for standardized installation, these valves provide reliable double-block and bleed functionality.

Request a quote

Detail Information

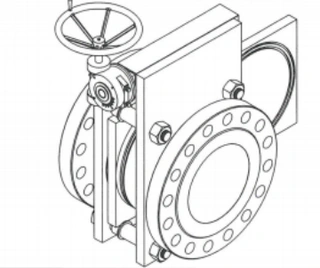

Product Name: Cam Slide Line Blind Valve (Horizontal Slide Type)
Standard: ASME B16.34
Nominal Size: 12 Inch (DN300)
Pressure Class: Class 150 LB
Bore: Full Bore
Design: Fire Safe
Face-to-Face (Flange to Flange): 425 mm
Blind Movement: Horizontal sliding motion
Installation Orientation: Horizontal pipeline

Service Conditions:

Fluid: Petrol (PMS) and Diesel (AGO)
Service Type: Liquid hydrocarbons
Application: Tank inlet and outlet lines, pump suction and discharge, product manifolds

Pressure and Temperature Rating:

Pressure Class: ANSI Class 150 LB
Design Temperature: -20°C to +80°C
Operation Condition: Blind insertion and withdrawal only at zero differential pressure

End Connections:

Facing: Raised Face (RF)
Flange Standard: ASME B16.5
Rating: Class 150 LB
Pressure Test: API 598

Materials of Construction:

Body: ASTM A216 WCB or ASTM A105
Blind Plate: ASTM A516 Grade 70
Cam Mechanism and Shaft: Stainless Steel AISI 410 or 420
Primary Seals: metal to metal
Secondary Seals: PTFE or Viton (FKM), fuel compatible.
