Weir Type Diaphragm Valve, Ductile Iron, BS 5156, DN40, PN16

The Weir Type Diaphragm Valve is a high-quality, durable valve designed for reliable fluid control. Manufactured in accordance with BS 5156 and MSS SP-88 standards, it features a ductile iron body, a rubber diaphragm, and DN40, PN16 specifications. With 1-1/2 inch Class 150 LB and FF flanged ends, this valve ensures secure connections and efficient operation in various industrial applications.

Product Name: Weir Type Diaphragm Valve
Design Standard: BS 5156, MSS SP-88
Body Material: Ductile Iron
Diaphragm Material: Rubber
Size: DN40, 1-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: FF Flanged

The Weir Type Rubber Lined Diaphragm Valve is manufactured to meet international standards. Since the flowing media does not come into contact with the working components of the valve, its service life is significantly extended. The valve features a self-draining function, ensuring that no residue remains, which helps keep the pipeline cleaner and healthier. The valve body is available in a variety of materials, including cast iron, ductile iron, and cast steel. The lining materials include glass, ETFE, PFA, PVDF, and Halar rubber, and can be specially processed to meet specific requirements.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 80°C
» Handwheel: Ductile Iron, Aluminum Alloy

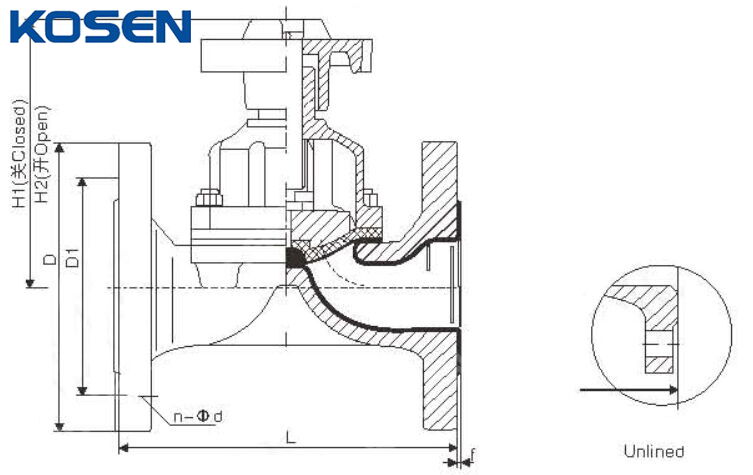

Main Material
