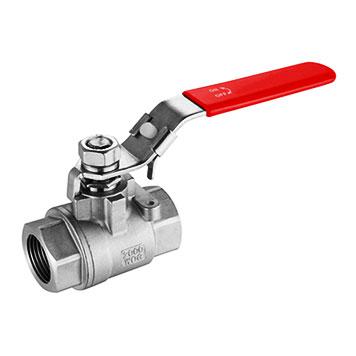

Two Piece Ball Valve, NACE MR0175, CF8M, 2 IN, 2000 PSI, NPT

Name: Two Piece Ball Valve, NACE MR0175, CF8M, 2 IN, 2000 PSI, NPT
SKU: KV-20250303-TBV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Two Piece Ball Valve features an ASTM A351 CF8M stainless steel body, offering excellent corrosion resistance and strength. With a 2-inch size (DN50) and a pressure rating of 2000 PSI, it is designed for reliable performance in demanding environments. The valve has NPT threaded ends for easy installation and is lever-operated for straightforward manual control. It is also NACE MR0175 compliant, making it suitable for use in sour gas environments.

Request a quote

Detail Information

Product Name: Two Piece Threaded Ball Valve
Body Material: ASTM A351 CF8M
Size: 2 Inch, DN50
Pressure: 2000 PSI
End Connection: NPT Threaded
Operation: Lever
NACE: NACE MR0175

The 2000 PSI threaded high-pressure ball valve is designed for controlling the flow and shut-off of hydraulic, fluid, and oil-gas pipelines. It features a compact structure, reliable sealing, and simple design, making it easy to operate and maintain. The valve is highly resistant to media erosion and ensures minimal flow resistance loss, providing efficient performance. Additionally, it boasts aesthetic design, durable construction, and excellent sealing reliability, making it a dependable choice for high-pressure applications.

Structural Features

» Full Port
» Port size: 1/4-2 Inch (DN8-DN50)
» Pressure: 2000 PSI
» Material: ASTM A351 CF8M, SS 316
» Temperature range: -20°C to 150°C
» Medium: Water, Oil, Gas
» 2-Piece Body
» Blow-out proof stem
» PTFE/RPTFE seal and packing
» Locking handle
» Threads conform to ASME B1.20.1 (NPT)
» Seal welded
» NACE MR0175 compliant

Materials of Main Parts

No	Part	Material
1	Body	ASTM A351 CF8M
2	Ball	SS 316
3	Bonnet	ASTM A351 CF8M
4	Seat	RPTFE
5	Thrust Washer	RPTFE
6	Packing	PTFE
7	Gland	SS 304
8	Stem	SS 316
9	Spring Washer	SS 304
10	Nut	A2-70
11	Locking Device	SS 201
12	Handle	SS 201

Main Dimensions (Inch)

Size	Port	Pressure	d	L	H	W	Weight (Lbs)	Torque (in.Lb)
1/4 Inch	FP	2000 PSI	0.4528	2.4606	2.1535	3.8976	0.75	42
3/8 Inch	FP	2000 PSI	0.4921	2.4606	2.1535	3.8976	0.71	42
1/2 Inch	FP	2000 PSI	0.5906	2.5106	2.2677	4.1732	0.82	49
3/4 Inch	FP	2000 PSI	0.7874	2.9531	2.4724	4.7638	1.21	73
1 Inch	FP	2000 PSI	0.9843	3.5528	2.7953	5.9055	2.03	113
1-1/4 Inch	FP	2000 PSI	1.2598	4.0244	3.0827	5.9055	3.02	253
1-1/2 Inch	FP	2000 PSI	1.4961	4.5571	3.5827	6.4961	4.78	288
2 Inch	FP	2000 PSI	1.9291	5.3150	3.9252	7.0866	8.02	391
