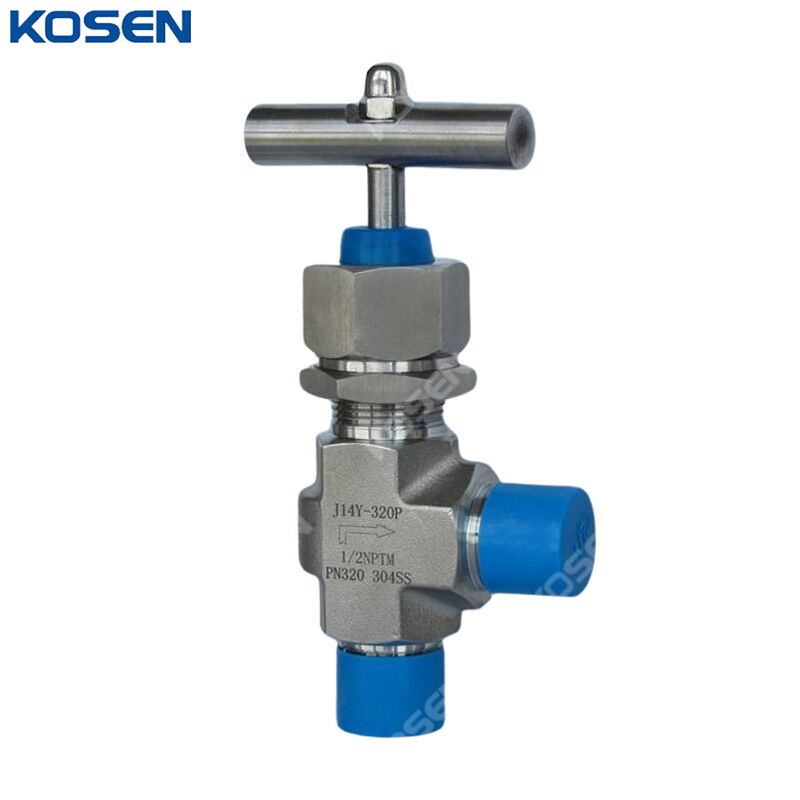

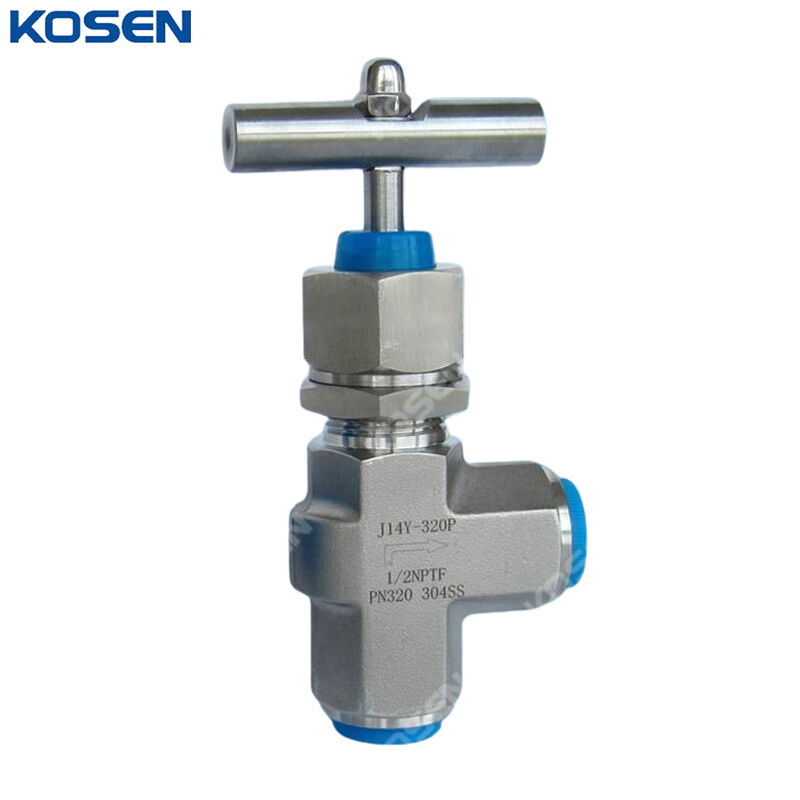

Stainless Steel Angle Needle Valve, SS 304, 3000 PSI, Manual

Name: Stainless Steel Angle Needle Valve, SS 304, 3000 PSI, Manual
SKU: KV-20241230-NV-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Stainless Steel Angle Needle Valve features a high-pressure rating of 3000 PSI and a durable SS 304 body. Available in customized sizes, it provides precise flow control and is manually operated for reliable performance. Ideal for high-pressure applications, this valve ensures secure, leak-proof connections in industrial systems.

Request a quote

Detail Information

Product Name: SS 304 Angle Needle Valve
Body Material: Stainless Steel SS 304
Size: Customized
Pressure: 3000 PSI
Drive Mode: Manual

The High-Pressure Needle Valve is a precision valve designed for fine-tuning and flow control. It features a needle-shaped valve plug that allows gradual and continuous adjustment of the flow rate from a closed to an open position. This type of valve is typically used in applications requiring precise throttle flow control. The valve plug is made from quenched steel and features long, slender needles, while the valve seats are crafted from soft materials such as tin or copper to ensure a tight seal.
For the SS-1RS8 Needle Valve, sealing between the stainless steel needle valve plug and the valve seat is achieved through a conical surface fit. The valve needle taper comes in two types: a 1:50 or 1:60 cone angle, and the conical surface is finely ground to ensure precision sealing. The seal between the valve stem and seat is maintained through corrugated pipes.

Technical Specifications

» Valve Purpose: Cut-off
» Nominal Diameter: DN6-DN100, 1/8-4 Inch
» Pressure Environment: High pressure
» Main Material: Stainless Steel 304
» Working Temperature: -40°C to 120°C
» Drive Mode: Manual
» Applicable Media: Various corrosive and non-corrosive media, such as oil, water, gas, etc.
» Connection Methods: Sleeve, welding, threading, flange
