PFA Lined Plug Valve, API 6D, ASTM A351 CF8, DN50, PN16, RF

The PFA Lined Plug Valve is designed in accordance with API 6D standards. These valves feature a stainless steel body made from ASTM A351 CF8, ensuring durability and corrosion resistance. The valves have a size of 2 inches (DN50) and are rated for PN16 (Class 150 LB). They are equipped with RF flanged ends for secure and reliable connections. The PFA lining provides excellent chemical resistance, making these valves suitable for applications involving aggressive media.

Product Name: PFA Lined Plug Valve
Design Standard: API 6D
Body Material: ASTM A351 CF8
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged

The Teflon Lined Plug Valves (full lining type) and Bushing Stopcock (semi-lining type) are designed for controlling the flow of medium and for medium distribution, such as in three-way stopcocks. These plug valves are primarily used for shutting off the flow of media. The fluorine lining is suitable for handling various concentrations of water, sulfuric acid, hydrochloric acid, hydrofluoric acid, and a wide range of organic acids, strong acids, and strong oxidizing agents at temperatures from -29°C to +180°C. FEP lining is also suitable for use with strong alkaline organic solvents and other corrosive gases and liquids.

Technical Specification

Product: Teflon Lined Plug Valve
Nominal Diameter: 1/2-14 Inch (DN15-DN350)
Normal Pressure Rating: PN10-PN16, Class 150-300 LB
Body Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
Lining Material: PTFE, PFA, PO, FEP
Operation Method: Manual, Worm Gear, Electric, Pneumatic Actuator
Temperature Range: -29°C to +180°C
Applicable Media: Sulfuric Acid, Hydrochloric Acid, Hydrofluoric Acid, Various Organic Acids, Strong Acids, Strong Oxidizing Agents, Acid, Alkali, Aqua Regia, etc.
Ends Connections: RF Flange

Standards Compliance

Design and Manufacture: API 6D, HG/T 3704, GB/T 12240
Face to Face (End to End): ANSI B16.10, GB/T 12221
Flanged Connection: ANSI B16.5, GB/T 9119
Test and Inspection: API 598, GB/T 13927

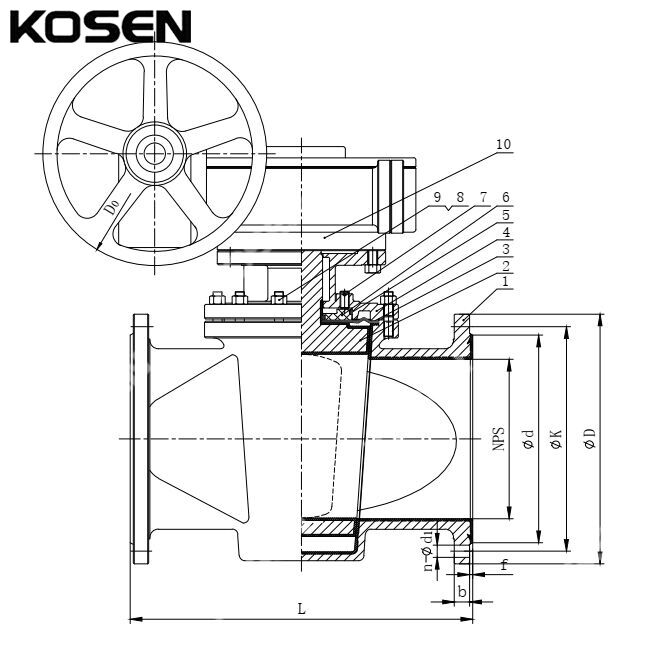

Material for Main Parts
