Marine Mud Boxes, JIS F7203, FC200, 50A, 5K, 2 Inch, FF

The Marine Mud Box is designed to filter out impurities from the media in marine and industrial applications. Built with a robust cast iron FC200 body, it meets JIS F7203 standards for durability and performance. This 2-inch (JIS 50A) mud box operates at a pressure rating of JIS 5K and features FF flanged ends for secure installation.

Product Name: Marine Mud Box
Design Standard: JIS F7203
Body Material: FC200
Size: JIS 50A, 2 Inch
Pressure: JIS 5K
End Connection: FF Flanged

Product Range

» Port Size: JIS 40A–250A, 1-1/2 Inch – 10 Inch
» Pressure: JIS 5K, JIS 10K
» Body Material: Ductile Iron, Stainless Steel
» Connection: FF Flange
» Function: Filters out impurities from the media
» Temperature: -29°C to 150°C
» Medium: Seawater, freshwater, bilge sewage, etc.

Marine valves are essential equipment used to control the pressure, flow rate, and flow direction of fluids within ship pipelines, ensuring compatibility with the environmental conditions of ships. A valve is a control device for fluid pipelines, and its primary function is to connect or shut off the flow of the pipeline medium, change the flow direction, adjust the pressure and flow rate, and protect the normal operation of pipeline equipment.

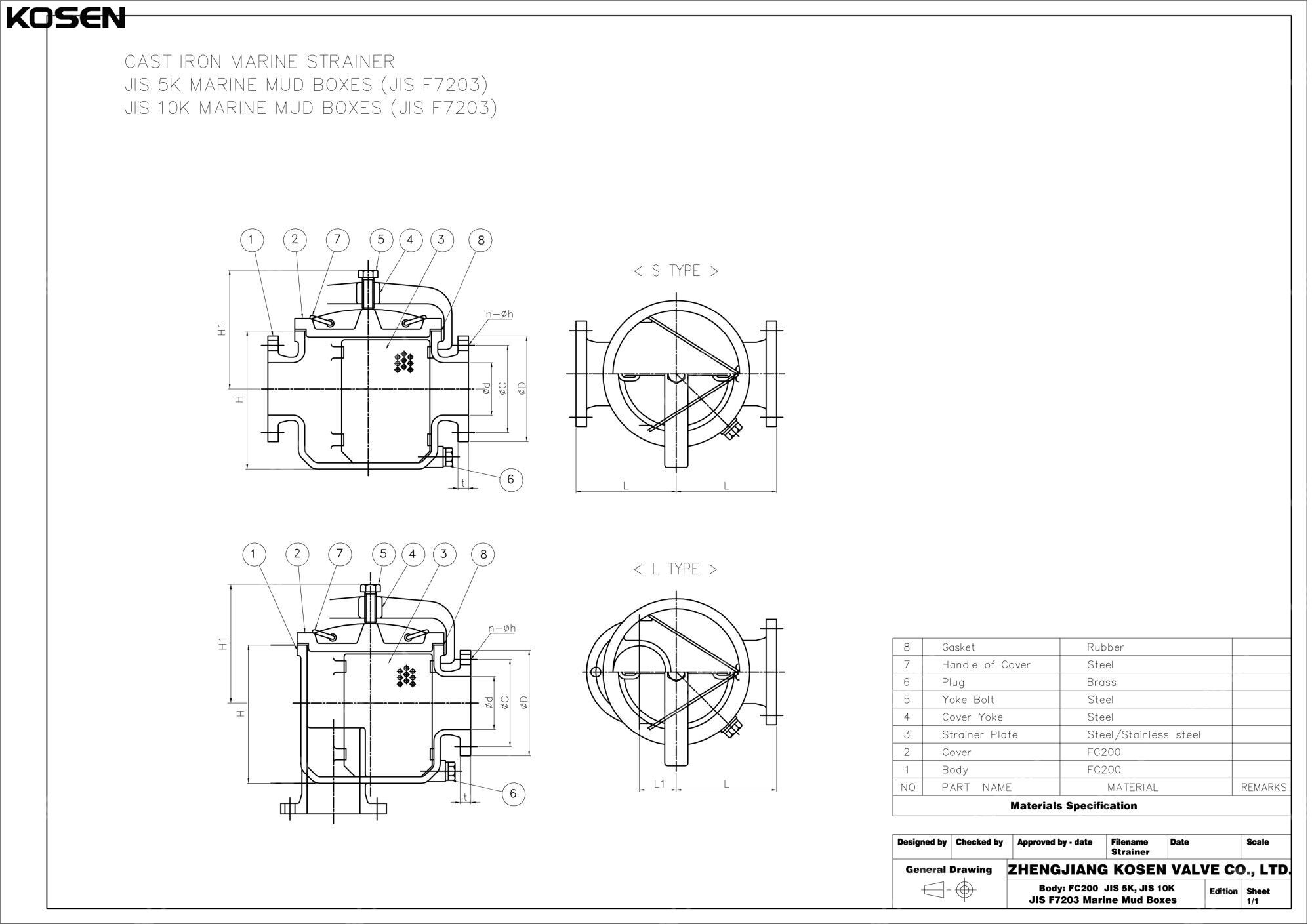

Materials of Main Parts
