Marine Angle Globe Valve, JIS F7422, SF440, S25C, 15A, 20K

Name: Marine Angle Globe Valve, JIS F7422, SF440, S25C, 15A, 20K
SKU: KV-20241226-MGLV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This Marine Angle Globe Valve, designed in accordance with JIS F7422 standards, features a forged steel body made from SF440 or S25C materials, ensuring robust strength and corrosion resistance. It complies with JIS 15A and JIS 20K standards, making it ideal for marine applications. The valve is equipped with RF (Raised Face) flanged ends and is operated using a handwheel.

Request a quote

Detail Information

Product Name: Marine Angle Globe Valve, Forged Steel
Design Standard: JIS F7422
Body Material: SF440 or S25C
Size: JIS 15A
Pressure: JIS 20K
End Connection: RF Flanged
Operation: Handwheel

Marine globe valves are devices used to control the pressure, flow rate, and direction of fluids in ship pipelines. These valves help meet the environmental conditions of ships. A valve is a control device for fluid pipelines. Its basic functions include connecting or cutting off the flow of the pipeline medium, changing the flow direction, adjusting the pressure and flow rate, and protecting the normal operation of pipeline equipment.

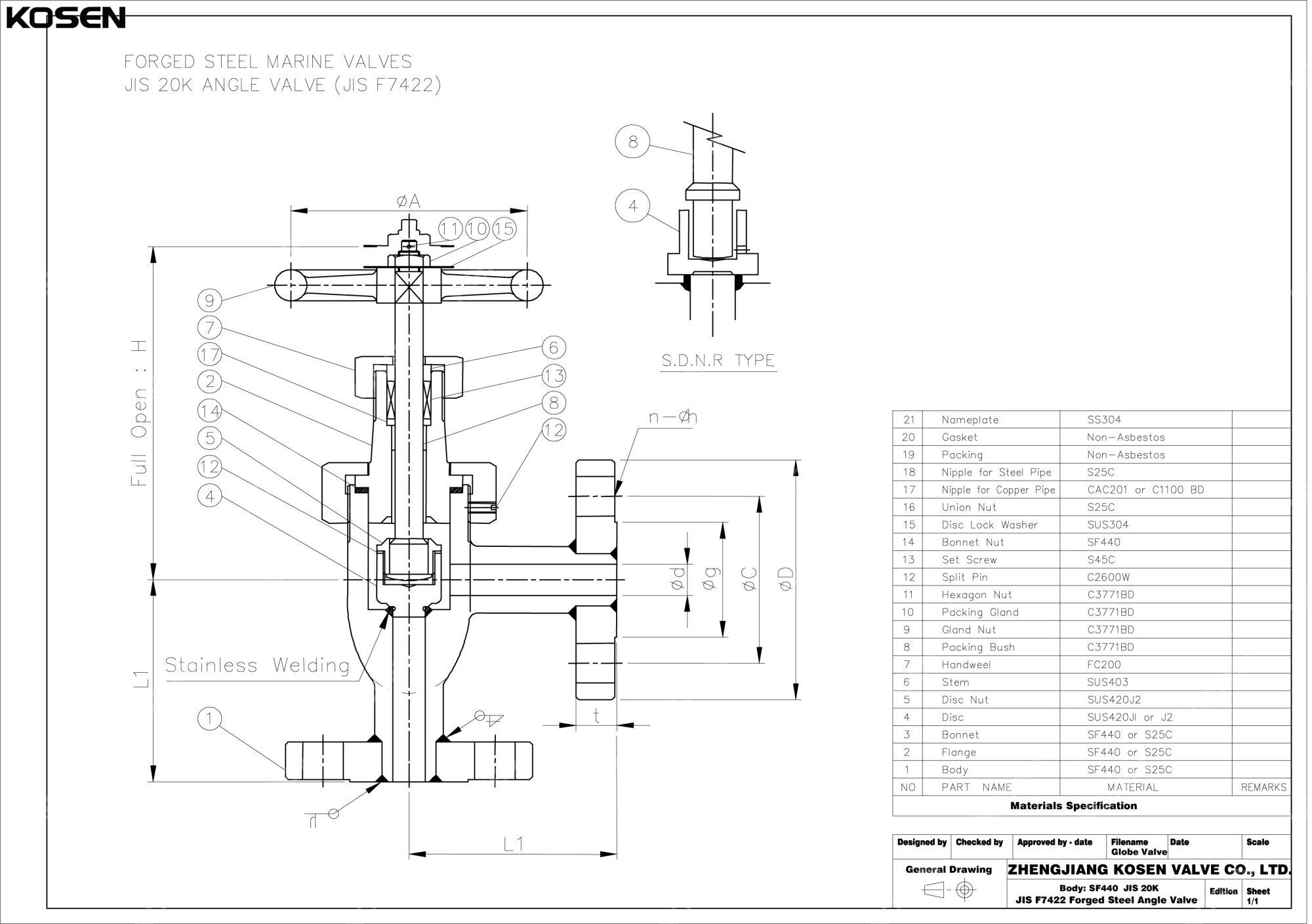

Materials of Main Parts

NO	Part Name	Material
1	Body	SF440 or S25C
2	Flange	SF440 or S25C
3	Bonnet	SF440 or S25C
4	Disc	SUS420JI or J2
5	Disc Nut	Non-asbestos
6	Stem	FC200
7	Handweel	FC200
8	Packing Bush	C3771BD
9	Gland Nut	C3771BD
10	Packing Gland	C3771BD
11	Hexagon Nut	C3771BD
12	Split Pin	C2600W
13	Set Screw	S45C
14	Bonnet Nut	SF440
15	Disc Lock Washer	SUS304
16	Union Nut	S25C
17	Nipple for Copper Pipe	CAC201 or C1100 BD
18	Nipple for Steel Pipe	S25C
19	Packing	Non-Asbestos
20	Gasket	Non-Asbestos
21	Nameplate	SS304
