JIS F7421 Marine Globe Valve, SF440, S25C, 20K, 15A, Flanged

Name: JIS F7421 Marine Globe Valve, SF440, S25C, 20K, 15A, Flanged
SKU: KV-20241226-MGLV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This JIS F7421 Marine Globe Valve, manufactured in China, features a forged steel body made from SF440 or S25C materials for enhanced strength and corrosion resistance. It is designed to meet JIS 15A and JIS 20K standards, making it suitable for marine applications. The valve is handwheel-operated for precise control and offers flanged end connections for secure installation.

Request a quote

Detail Information

Product Name: JIS F7421 Marine Forged Steel Globe Valve
Design Standard: JIS F7421
Body Material: SF440 or S25C
Size: JIS 15A
Pressure: JIS 20K
End Connection: Flanged
Operation: Handwheel

Marine Globe valves are essential devices used to control the pressure, flow rate, and direction of fluids in ship pipelines, ensuring they meet the specific environmental conditions of maritime operations. A Globe valve is a control mechanism for fluid pipelines, with its primary functions being to open or close the flow of medium, change the flow direction, regulate pressure and flow rate, and protect the proper functioning of pipeline equipment.

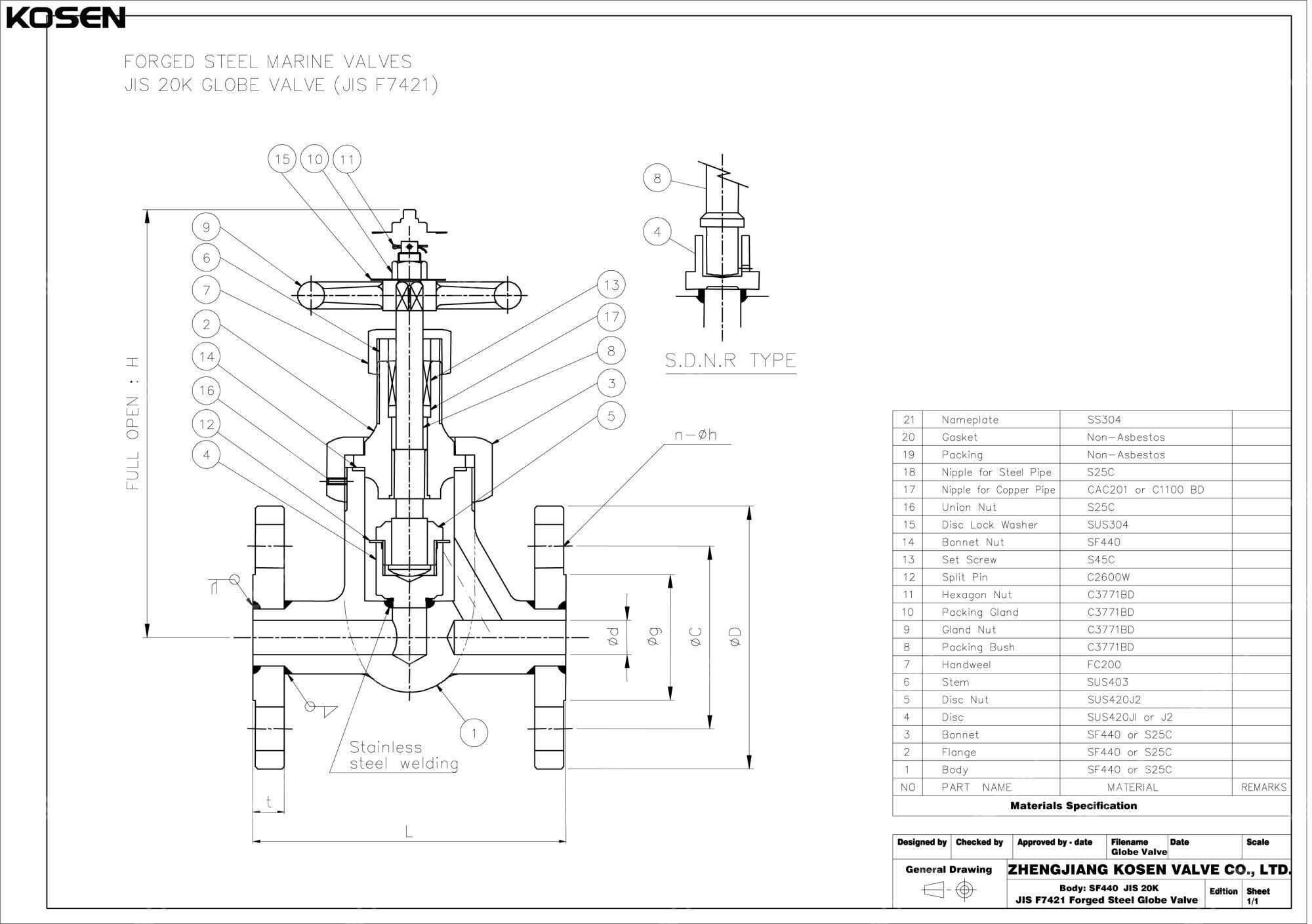

Materials of Main Parts

NO	Part Name	Material
1	Body	SF440 or S25C
2	Flange	SF440 or S25C
3	Bonnet	SF440 or S25C
4	Disc	SUS420JI or J2
5	Disc Nut	Non-asbestos
6	Stem	FC200
7	Handweel	FC200
8	Packing Bush	C3771BD
9	Gland Nut	C3771BD
10	Packing Gland	C3771BD
11	Hexagon Nut	C3771BD
12	Split Pin	C2600W
13	Set Screw	S45C
14	Bonnet Nut	SF440
15	Disc Lock Washer	SUS304
16	Union Nut	S25C
17	Nipple for Copper Pipe	CAC201 or C1100 BD
18	Nipple for Steel Pipe	S25C
19	Packing	Non-Asbestos
20	Gasket	Non-Asbestos
21	Nameplate	SS304
