JIS F7368 Marine Gate Valve, BC6, 40A, 10K, 1-1/2 Inch, NRS

The Non-Rising Stem Marine Gate Valve is designed per JIS F7368 standards, featuring a durable bronze JIS BC6 body. This 1-1/2 inch, JIS 40A valve is rated for JIS 10K pressure, ensuring reliable performance in marine applications. With FF flanged ends for secure installation, it is ideal for precise flow control in critical maritime systems.

Product Name: JIS F7368 Marine Gate Valve, Non-Rising Stem(NRS)
Design Standard: JIS F7368
Body Material: Bronze JIS BC6
Size: JIS 40A, 1-1/2 Inch
Pressure: JIS 10K
End Connection: FF Flange
Operation: Handwheel

Product Range

Port Size: 50A-65A, 2 Inch - 2-1/2 Inch
Pressure: JIS 5K, JIS 10K
Structure: Non-Rising Wedge Gate Valve
Temperature: -29°C ~ 345°C
Body Material: Bronze BC6, Bronze C95800
Connection: FF Flange
Medium: Sea water, fresh water, oil, etc.

Marine valves are essential components used to regulate the pressure, flow rate, and flow direction of fluids within a ship's pipeline system. These valves are designed to withstand the unique environmental conditions and operational requirements of marine applications. As control devices, marine valves serve several critical functions: they either connect or shut off the flow of fluid within the pipeline, alter the flow direction, adjust the pressure and flow rate, and ensure the protection of pipeline equipment. By managing these fluid parameters, marine valves help maintain the efficient and safe operation of the ship's systems.

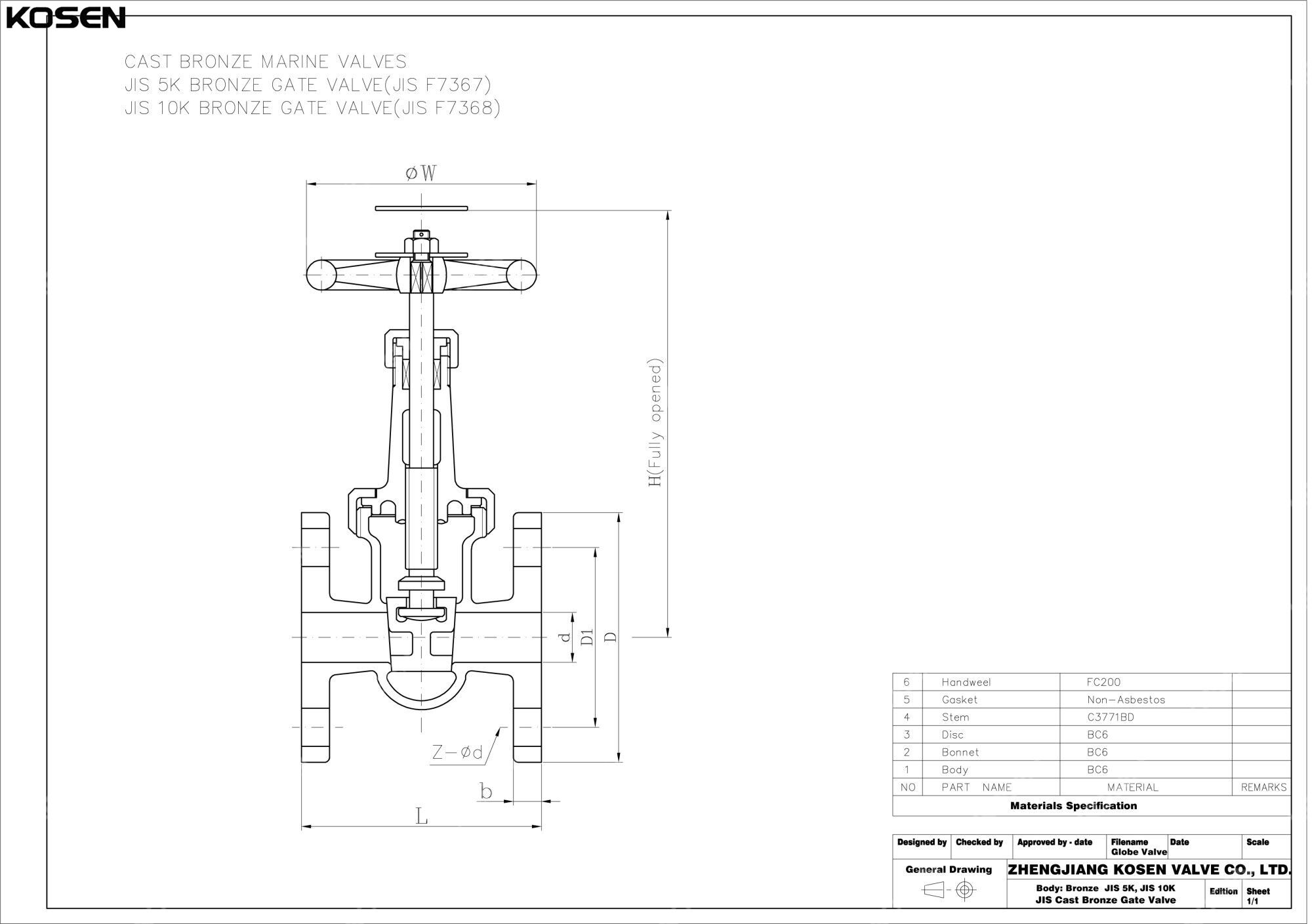

Materials of Main Parts
