JIS F7121 Can Water Strainer, JIS FC200, 100A, 5K, 4 IN, FF

The JIS F7121 Can Water Strainer features a robust cast iron JIS FC200 body, designed for reliable filtration in water systems. Equipped with a stainless steel filter screen, this 4-inch, JIS 100A strainer is rated for JIS 5K pressure. With FF flanged ends, it ensures secure and leak-proof installation in pipelines.

Product Name: JIS F7121 Can Water Strainer
Design Standard: JIS F7121
Body Material: JIS FC200, Cast Iron
Filter Screen: Stainless Steel
Size: JIS 100A, 4 Inch
Pressure: JIS 5K
End Connection: FF Flange

Product Range

Port Size: 25A-100A, 1-4 Inch
Pressure: JIS 5K, JIS 10K
Structure: Filter out impurities from the media
Temperature Range: -29°C to 150°C
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Connection Type: FF Flange
Medium: Sea Water, Fresh Water, Oil, etc.

Marine valves are essential components used in ship pipelines to regulate the flow, pressure, and direction of fluids, ensuring the efficient operation of the vessel's systems. These valves are designed to withstand the unique environmental conditions of marine environments, such as high humidity, corrosion, and fluctuating temperatures. Their primary function is to control the movement of various fluids through the ship’s pipelines, ensuring safety, reliability, and operational efficiency.

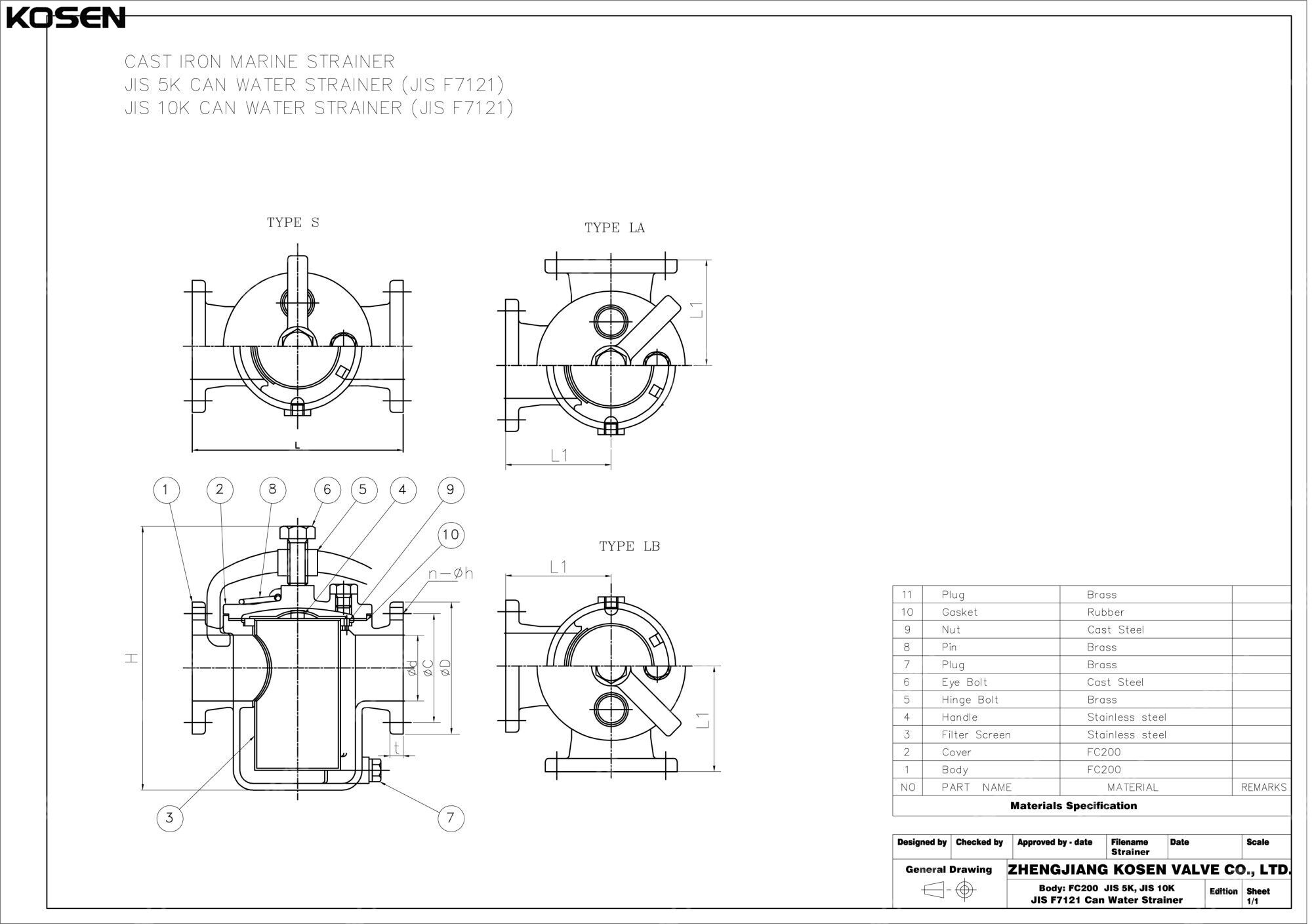

Materials of Main Parts
