GS-C25 Bellows Sealed Globe Valve, DIN 3356, DN50, PN16, RF

The GS-C25 Bellows Sealed Globe Valve, manufactured according to DIN 3356 standards, features a carbon steel body for durability and corrosion resistance. With a DN50 (2-inch) size and a pressure rating of PN16, Class 150 LB, this valve is designed for reliable fluid control in moderate-pressure systems. It comes with RF flanged ends for secure connections and is handwheel operated for easy manual control.

Product Name: GS-C25 Bellows Sealed Globe Valve
Design Standard: DIN 3356
Body Material: GS-C25
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel

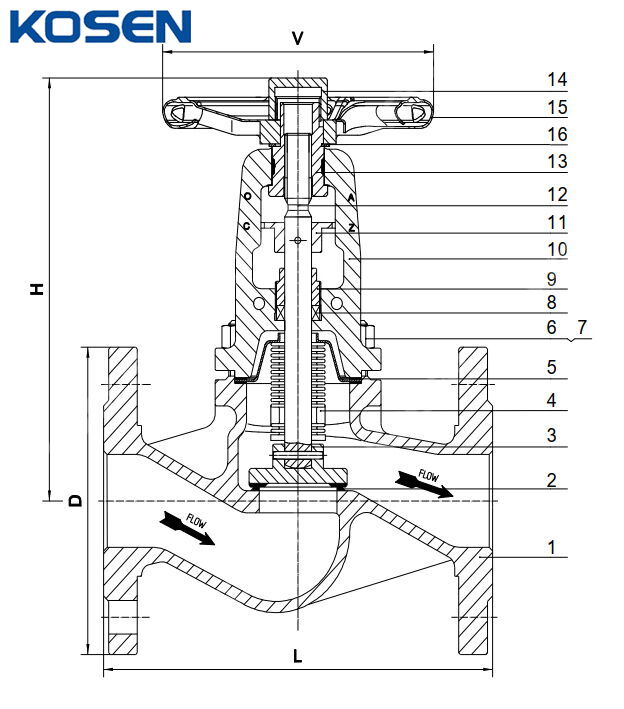

The Bellows Sealed Globe Valve integrates advanced foreign technology, featuring a double bellows design welded to the valve stem to ensure stable operation. This design minimizes valve vibration caused by plug movement, ensuring zero leakage from the stem, even at high temperatures, as the stem does not come into contact with the medium. The valve's construction provides sufficient strength and toughness, enabling it to withstand tens of thousands of cycles.
The ergonomically designed handwheel contributes to a longer service life and facilitates easy operation. The valve employs a plug-shaped design for opening and closing, with either a flat or conical sealing face. It moves straight along the fluid's centerline, making it one of the most widely used and durable valves in industrial applications. Its design minimizes friction during operation, ensuring longevity and ease of manufacturing.

Technical Specifications

» Nominal Diameter: 1/2–16 Inch, DN15–DN400
» Design Pressure: Class 150–600 LB, PN16–PN64
» Materials:
  Body: 1.0619, GS-C25, ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M
  Bellows: SS 304, SS 316, SS 316L, etc
» End Connection: Flanged, Welded, or Threaded Ends
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Design and Manufacture: ANSI B16.34, DIN 3356
» Inspection and Testing: ISO 5208, EN 12266
» Flanged Ends Dimension: DIN 2543, DIN 2544, DIN 2545
» Butt-Welded Ends Dimension: EN 12627
» Face-to-Face and End-to-End: DIN 3202, EN 558-1, ISO 5752
» Pressure-Temperature Ratings: DIN 2401
» Test & Inspection: DIN 3230
» Medium: Water, Gas, Oil, etc
» Temperature Range: -29°C to 595°C

Product Features

» Reliable Design: Bellows Sealed Globe Valves are known for their reasonable structure, reliable sealing, excellent performance, and aesthetic appeal.
» Versatile Material Options: Offering a wide range of cast body and trim materials, these valves provide the most economical solutions for various process and steaming systems.
» Durable Sealing Surface: The sealing surface is hard-faced with chromium alloy, offering resistance to abrasion, corrosion, and friction for extended service life. Double sealing ensures tight shut-off and perfect operation.
» Enhanced Stem Durability: The stem undergoes quenching and tempering with nitriding treatment, ensuring excellent anti-corrosion and anti-friction properties.
» Optional Stem Position Indicator: Available as an option to show the valve's on/off status directly for enhanced visibility and control.
