Fluorine Lined Diaphragm Valve, BS 5156, WCB, DN50, PN10

The Fluorine Lined Diaphragm Valve is designed per BS 5156 and MSS SP-88 standards, featuring a carbon steel ASTM A216 WCB body with a fluorine lining for superior chemical resistance. Sized at DN50 (2 inches) with a PN10 (Class 150 LB) pressure rating, it is equipped with raised face (RF) flanged ends for secure installation.

Product Name: Fluorine Lined Diaphragm Valve
Design Standard: BS 5156, MSS SP-88
Body Material: ASTM A216 WCB
Lining Material: Fluorine
Size: DN50, 2 Inch
Pressure: PN10, Class 150 LB
End Connection: RF
Operation: Manual

Weir Type Rubber Lined Diaphragm Valves are engineered to meet international standards. These valves offer significantly extended service life because the flowing media does not come into contact with the working components. Featuring a self-draining function, the valves ensure no residue remains, keeping the pipeline cleaner and more hygienic. The valve body is available in a variety of materials, including cast iron, ductile iron, and cast steel. The lining materials—such as Glass, ETFE, PFA, PVDF, and Halar rubber—can be customized to meet specific requirements.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150 LB
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 80°C
» Handwheel: Ductile Iron, Aluminum Alloy

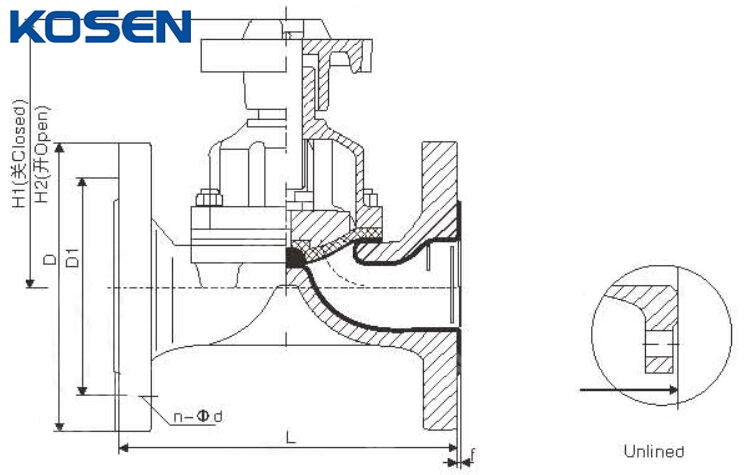

Main Material
